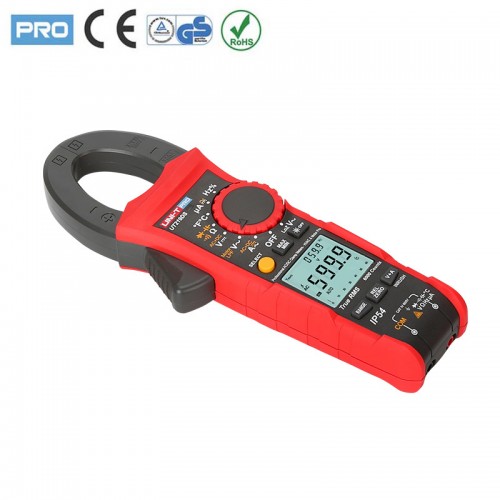

UT219DS Professional Clamp Meter

Out Of Stock UT219DS Professional Clamp Meter

UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

UT219 English manual

AC current (A)600A±(1.8%+6)
DC current (A)600A±(1.8%+6)
AC voltage (V)1000V±(1%+6)
DC voltage (V)1000V±(0.6%+3)
LoZ ACV600V±(2.5%+6)
Resistance (Ω)60MΩ±(1%+3)
Capacitance (F) 60mF±(4%+7)
Frequency (Hz)600Hz~40MHz±(0.1%+6)
Duty cycle0.1%~99.9%±(2.6%+7)
Display count 6000
Auto/Manual range
Jaw opening 33mm
True RMS
AC current frequency response 40Hz~400Hz
AC voltage frequency response 40Hz~1kHz
3-phase motor sequence test600V
Low pass filter1kHz, 3db attenuation
V+A displays voltage and current at the same time
Diode test 3V
Measurement sampling rate 5 times/s
Analog bar sampling rate 20 times/s
Analog bar  31 segment
Display interface (LCD) Dual
Auto power off/MAX/MIN
Low battery indication
Data hold (H)/Relative mode (REL)
ZERO mode
Function selection (SELECT)
Auto backlight/2m drop test
IP rating IP54
Input impedance≥10MΩ
General Characterisitics
Power1.5V battery (R03) x 3
Display35mm x 31mm
Product colorRed and grey
Product net weight310g
Product size234.6mm x 82mm x 47mm
Standard accessoriesTest leads, batteries, carrying bag, PC software CD, point contact temperature probe
Standard individual packingGift box, blister, English manual (German, French, Spanish optional)
