- Stock: In Stock
- Model: 1.6MPa G1/4 - 2512
- SKU: 4013

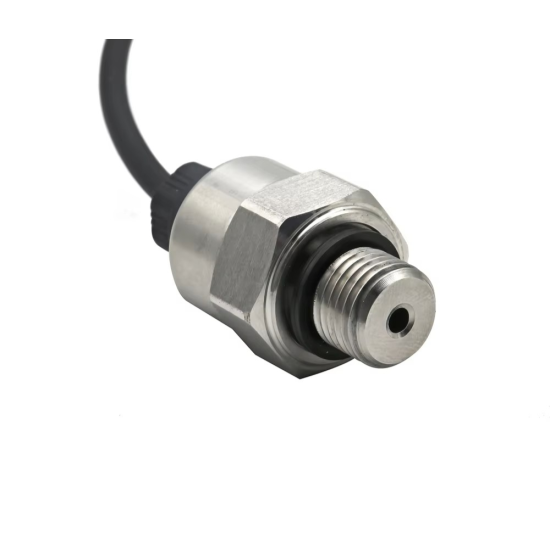

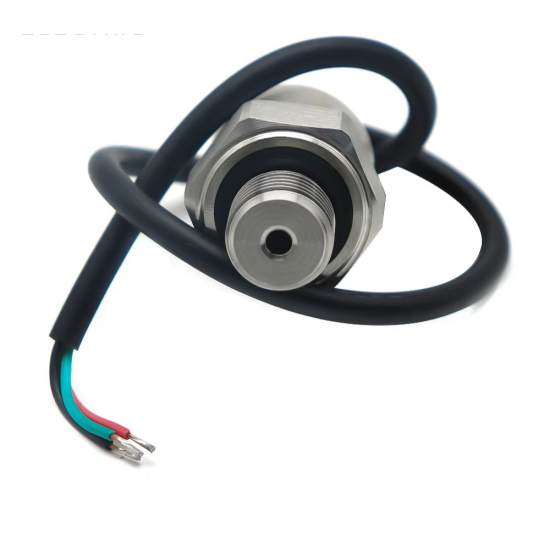

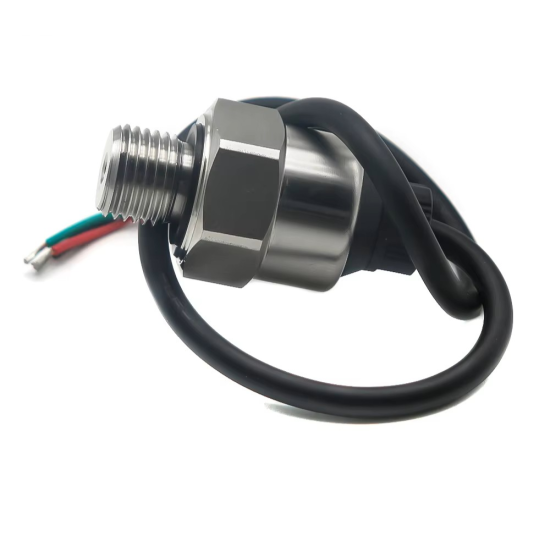

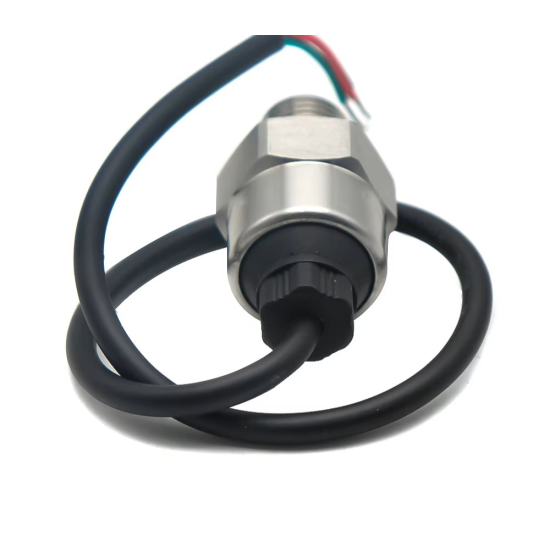

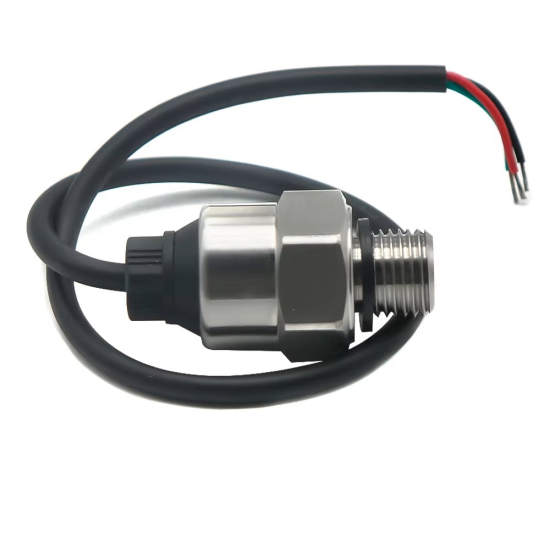

The 1.6MPa G1/4" Stainless Steel Pressure Transducer Sensor is designed for high-accuracy pressure measurement in oil, gas, and liquid systems. Built with a robust stainless steel body, it provides excellent durability and surge protection, making it suitable for industrial and automation projects. With an operating voltage of 5V DC, this sensor outputs 0.5–4.5VDC proportional to the measured pressure, ensuring stable and precise readings. It supports pressures up to 1.2MPa (working) and withstands up to 2.4MPa, making it reliable even in demanding environments. Compact, lightweight, and featuring IP65 protection, this sensor is perfect for applications such as tanks, pumps, and process monitoring systems.
Features:
High Precision – ±1.5%FS accuracy with low error from hysteresis or repeatability.
Stainless Steel Housing – Ensures long service life and resistance to harsh conditions.
Wide Pressure Range – Measures up to 1.2MPa, max applied 2.4MPa.
Fast Response – <2ms response time for real-time monitoring.
Low Power Consumption – Operates on 5V DC, draws <10mA.
IP65 Waterproof Rating – Suitable for rugged industrial environments.
Easy Installation – Standard G1/4" threaded interface for quick setup.
Applications:
- Oil Tank Pressure Monitoring – Safe and accurate liquid pressure detection.
- Gas Tank Systems – Stable monitoring for industrial gas applications.
- Water Pumps & Liquid Systems – Reliable integration for automation.
- Industrial Process Control – Enhances precision in monitoring systems
- DIY Robotics & IoT Projects – Pressure sensing for smart monitoring solutions.
| General Specifications | |
| Interface Size | G1/4" (2-point thread) |
| Working Voltage | 5V ±0.5VDC |
| Output Voltage | 0.5–4.5VDC @ 5V |
| Working Current | <10mA |
| Working Pressure Range | 0–1.2MPa |
| Maximum Applied Pressure | 2.4MPa |
| Destruction Pressure | 1.6MPa |
| Suitable Medium | Gas, liquid (clean, non-corrosive) |
| Accuracy | ±1.5%FS |
| Response Time | <2.0ms |
| Protection Level | IP65 |
| Working Temperature | -20°C to 105°C |
| Storage Temperature | -20°C to 105°C |
| Body Material | Stainless Steel |
| Weight | 0.0511 kg |

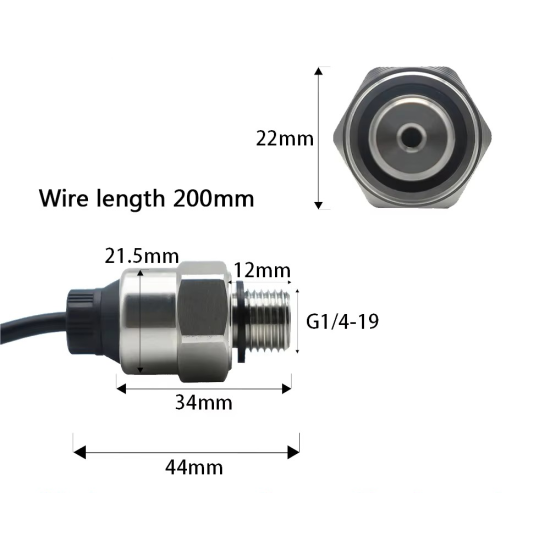

| Dimensions | 7 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
