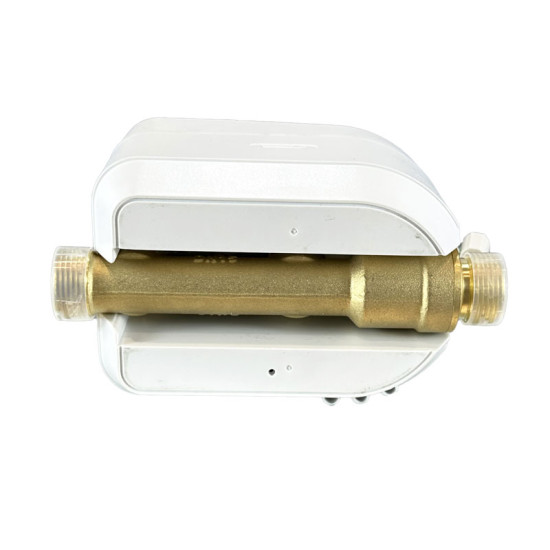

LoRaWAN Ultrasonic Water Meter DN15
KES 15,000.00
- Stock: In Stock
- Model: DN20
- SKU: 3308
The Wireless ultrasonic water meter (LoRa)is intelligent measuring instruments by the flow sensor and calculators. Calculator used the sensor and through the water of time difference to collect temperature differences and sound waves to complete accurate measurement of water flow. It can transmit data through wireless LoRa module. It can provide important application and date for many applications in the pipeline. It has a higher measurement accuracy and is not subject to sand and wear and has a longer service life. This type of water meter, which can detect the time difference caused by the change of velocity when the ultrasonic beam propagates along and against the current in the water, analyze the flow rate of the treated water, and further calculate the flow rate of the treated water. There are no moving parts inside, no current blocking elements, not affected by impurities in water, long service life.
You can use this by designing your own gateway for a wide range of real life application solutions using a wide variety of LoRA Gateway that we have
Function and Supply conditions
- 1.Size:DN15
- 2.Wide range ratio, R=250,R=400
- 3.Wireless remote technology:4G Cat1/LoRaWAN/NB-IOT
- 4.Wired remote technology:RS-485 and MBus
- 5.Low initial flow (up to 4m³/ h）
- 6.Water metering data history storage locally.
- 7.Real-time Hall counter accumulates flow.
- 8.Battery power and external power supply can be chosen.
- 9.Low battery capacity alarm, Valve failure alarm.
- 10.Display content: current reading, electric quantity, balance, valve status.
- 11.Infrared configuration: Infrared set/read meter parameters.
Performance characteristics
- Battery can work continuously for more than 8 years.
- No mechanical moving parts, no wear, long service life.
- IP68 protection design, which can work in water for a long time.
- High stability and can work at any flow point for a long time, measure free from magnetic interference.
Technical
| DN(mm) | 20 |
| Starting Flow （m³/h） | 0.004 |
| Qs（overload flow rate）（m³/h） | 5 |
| Qp（permanent flow rate）（m³/h） | 4 |
| Qt（transition flow rate）（m³/h） | 0.025 |
| Qmin（minimum flow rate）（m³/h） | 0.016 |
| R=Qp/Qm（flow range）（m³/h） | |
| Min instantaneous flow reading（m³/h） | |
| Max instantaneous flow reading（m³/h） | |
| Max cumulative flow reading |
Parameters
| Body Meterials | Brass |
| Max admissible work pressure | 1.6MPa |
| Sensitivity grade of flow profile | U10 D5 |
| Water temperature | T30/T90 |
| Pressure Loss | △p10/△p16/△p25/△p63 |
| Electromagnetic environment class | E1 |
| Working temperature | -20-70℃ |
| Protection Class | IP68 |
| Screen displays | Displays cumulative flow（m³,L） |
| instantaneous flow(M ³/ h. L / min) | |
| electricity alarm, water flow direction | |
| output mode,etc. |
