- Stock: In Stock
- Model: XG07E 5V
- SKU: 4002
Product advantages
1. The electric lock has a built-in micro switch for short-circuit signal output. When locked, the signal line is turned on, and after unlocking, the signal line is disconnected.
2. Strong earthquake resistance and tensile force, strong earthquake without decoupling, can withstand 50KG tensile force
3. Low-power design, automatically reduce the current after unlocking to prevent continuous power consumption, and can be driven by dry batteries
product information

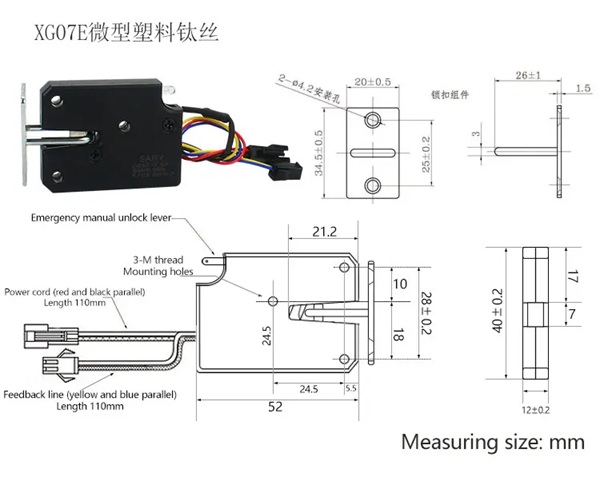

Product Model: XG07E Micro Lock
Product material: ABS plastic
Electrical parameters: DC5V/0.8A
Bearing tension: 50KG
Power-on time: 500ms
Working method: power on to open the door / power off to close the door and lock the door
Working environment: -20~55°C (no freezing, no condensation)
Applicable door types: all kinds of lattice vending machines, lockers, filing cabinets, mobile phone cabinets, lockers, etc.
Precautions for the use of titanium wire locks
1. The power-on time of the titanium wire lock is used according to the power-on time marked on the dark shell. Excessive power-on time or
too frequent switching will damage the internal components.
(Power-on time <500ms)
2. If the installed cabinet door is too heavy to be energized and cannot be pushed open or the titanium wire lock is still energized, closing the cabinet door will also burn the internal components.
