- Stock: In Stock

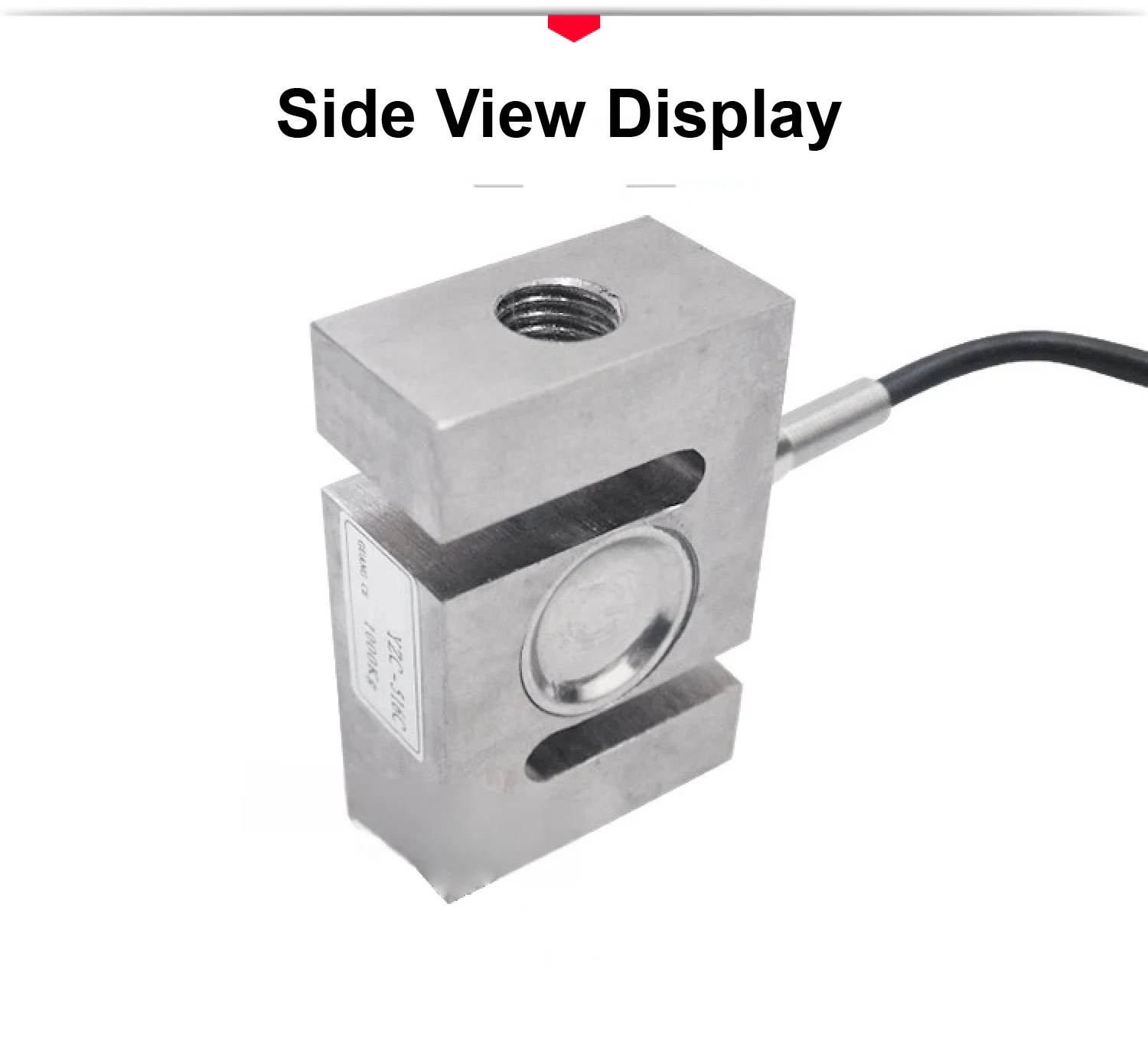

- Model: S Type Load Cell
- SKU: 4010
Default Parameters
Capacity Range: 100kg
Material: Alloy Steel
Temperature Range: -35°C to 80°C
Accuracy: C2 – C3
Parameters

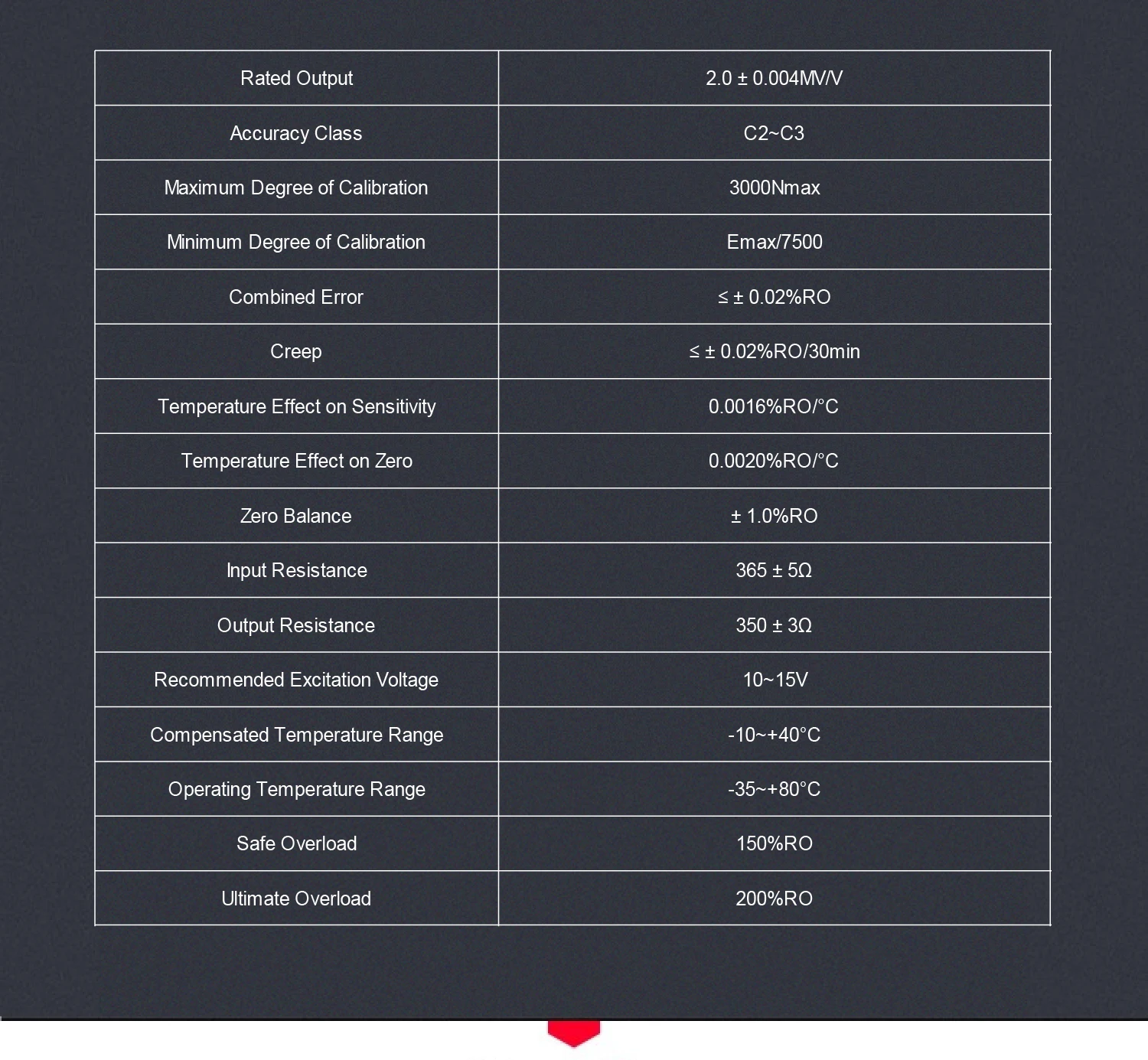

Specification | Value |

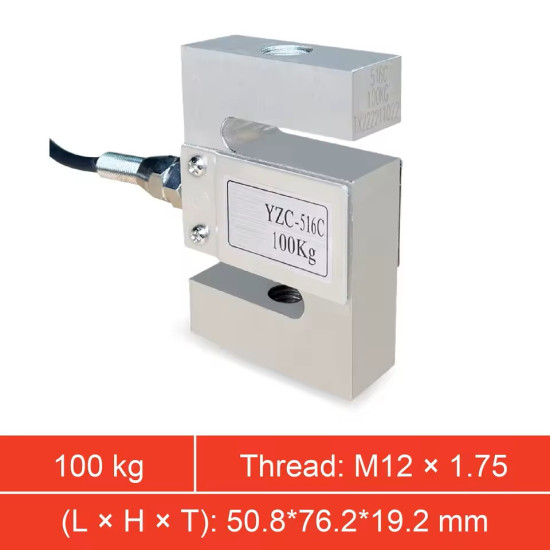

Model | YZC-516C |
Capacity Range | 100kg |
Material | Alloy Steel |
Rated Output | 2.0 ± 0.004 mV/V |
Accuracy Class | C2 – C3 |
Max. Calibration Division | 3000 |
Min. Calibration Division | Emax / 7500 |
Combined Error | ≤ ±0.02% RO |
Creep (30 min) | ≤ 0.02% RO |
Temp. Effect on Sensitivity | ≤ 0.0016% RO/°C |
Temp. Effect on Zero | ≤ 0.002% RO/°C |
Zero Balance | ±1.0% RO |
Input Resistance | 365 ± 5 Ω |
Output Resistance | 350 ± 30 Ω |
Insulation Resistance | ≥ 5000 MΩ (50V) |
Recommended Excitation Voltage | 10 ~ 15 V |
Compensated Temp. Range | -10°C ~ +40°C |
Operating Temp. Range | -35°C ~ +80°C |
Safe Overload | 150% RO |
Ultimate Overload | 200% RO |
3. Features
Robust Alloy Steel Construction
Built to withstand industrial environments with high strength and durability.
High Accuracy (C2-C3)
Delivers reliable and precise measurements, suitable for critical weighing tasks.
Low Creep & Stable Output
Ensures consistent performance even under long-term loading.
Wide Temperature Tolerance
Operates reliably in extreme conditions from -35°C to +80°C.
Strong Overload Capacity
Withstands up to 200% of rated load without performance degradation.
4. Applications
Floor and platform scales
Industrial automation weighing systems
Logistics and cargo monitoring
