New

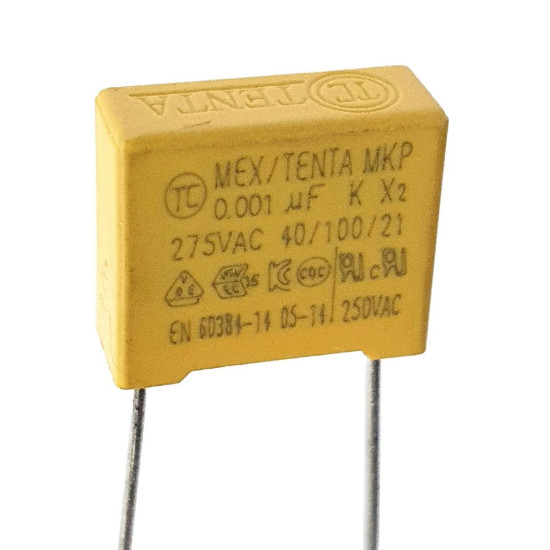

Safety Capacitor X2 0.001uF 275V P10
KES 100.00
- Stock: In Stock
- Model: X2 102K 275V P10
- SKU: 4037
- X2: This is the safety rating and class designation for the capacitor. X2 safety capacitors are designed for use in AC line-to-line (across-the-line) applications where failure mode is a short circuit, and they are certified to handle mains voltage transients safely.
- 102K: This indicates the capacitance value and tolerance.
- 102: This is the capacitance code in picofarads (pF). The first two digits are the value (10), and the third digit is the multiplier (10² or 100). So, 10 * 100 pF = 1000 pF.
- K: This signifies the tolerance, which is typically ±10%.
- Therefore, the capacitance is 1000 pF (or 1 nF, or 0.001 µF).
- 275V: This is the maximum rated AC working voltage. These capacitors are designed to operate safely on mains power lines, typically 220V-240V, with a rating of 275 VAC to provide a safety margin.
- P10: This indicates the pitch, or the distance between the capacitor's pins/leads, which is 10mm. This is important for ensuring it fits correctly onto a printed circuit board (PCB).
