Overview: Home Automation using ESP8266 Web Server
In this project, we learn how to make IoT Based Home Automation using ESP8266 Web Server. By Home Automation we mean controlling lighting and appliances without any manual switch but using a system that is connected to the Internet. When connected to the Internet, home devices are an important constituent of the Internet of Things (“IoT”).
In this project, we will be using a Local Web Server. A web server is a device that runs websites. It’s a program or a bunch of code that distributes web pages as they are requisitioned. The basic objective of the Web Server is to store, process, and deliver web pages to the users. This intercommunication is done using Hypertext Transfer Protocol (HTTP).

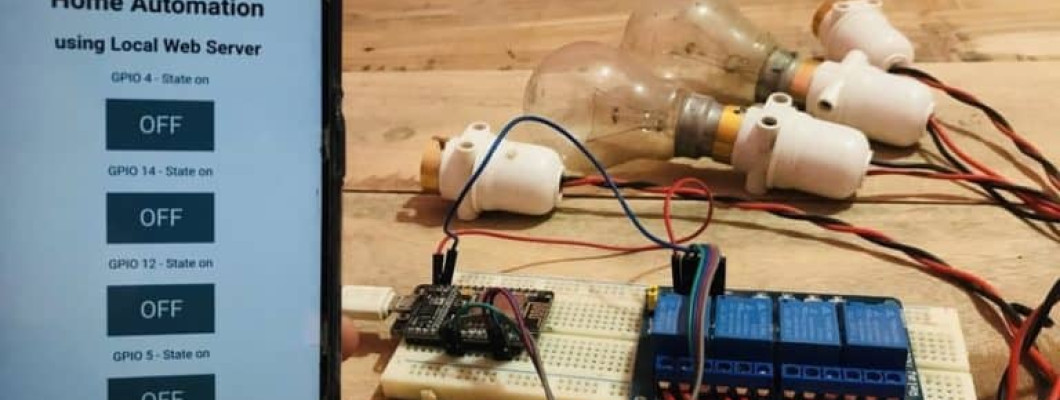

In this Home Automation System, we will control 4 home appliances connected to the Relay using a Local Web Server. The Wifi Module NodeMCU ESP8266 will Receive commands from the Web Page.
Bill of Materials
The following are the components required for making this project. All the components can be easily purchased from Our Store. The component purchase link is given below.
The circuit diagram for Web Server Controlled Home Automation using ESP8266 is given below. Using this circuit diagram you can assemble the circuit on the Breadboard using 4 4-channel Relay and NodeMCU Board.
Home Automation PCB & Gerber File
If you don’t want to assemble the circuit on a breadboard and you want a PCB for the project, then here is the PCB for you. The PCB Board for the Home Automation Project is designed using the EasyEDA online Circuit Schematics & PCB designing tool. The front side and back side of the PCB are given below.
Home Automation PCB Front ViewHome Automation PCB Back View
The Gerber File for the PCB Board is given below. You can simply download the Gerber File for this project.
Copy the code from below and upload it to the NodeMCU Board.
constchar*ssid="MySmartHome";//wifi name
constchar*password="yourpassword";//wifi password
But before uploading change the WiFi SSID & Password.
#include <ESP8266WiFi.h>
// Replace with your network credentials
const char* ssid = "MySmartHome"; //wifi name
const char* password = "hngzhowxiantan"; //wifi password
// Set web server port number to 80
WiFiServer server(80);
// Variable to store the HTTP request
String header;
// Auxiliar variables to store the current output state
String output0State = "off";
String output1State = "off";
String output2State = "off";
String output3State = "off";
// Assign output variables to GPIO pins
const int output0 = D2; //GPIO4
const int output1 = D5; //GPIO14
const int output2 = D6; //GPIO12
const int output3 = D1; //GPIO5
void setup() {
Serial.begin(115200);
// Initialize the output variables as outputs
pinMode(output0, OUTPUT);
pinMode(output1, OUTPUT);
pinMode(output2, OUTPUT);
pinMode(output3, OUTPUT);
// Set outputs to LOW
digitalWrite(output0, LOW);
digitalWrite(output1, LOW);
digitalWrite(output2, LOW);
digitalWrite(output3, LOW);
// Connect to Wi-Fi network with SSID and password
Serial.print("Connecting to ");
Serial.println(ssid);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
// Print local IP address and start web server
Serial.println("");
Serial.println("WiFi connected.");
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
server.begin();
}
void loop()
{
WiFiClient client = server.available(); // Listen for incoming clients
if (client)
{ // If a new client connects,
Serial.println("New Client."); // print a message out in the serial port
String currentLine = ""; // make a String to hold incoming data from the client
while (client.connected()) { // loop while the client's connected
if (client.available()) { // if there's bytes to read from the client,
char c = client.read(); // read a byte, then
Serial.write(c); // print it out the serial monitor
header += c;
if (c == '\n') { // if the byte is a newline character
// if the current line is blank, you got two newline characters in a row.
// that's the end of the client HTTP request, so send a response:
if (currentLine.length() == 0) {
// HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
// and a content-type so the client knows what's coming, then a blank line:
client.println("HTTP/1.1 200 OK");
client.println("Content-type:text/html");
client.println("Connection: close");
client.println();
// turns the GPIOs on and off
if (header.indexOf("GET /4/on") >= 0)
{
Serial.println("GPIO 4 on");
output0State = "on";
digitalWrite(output0, HIGH);
}
else if (header.indexOf("GET /4/off") >= 0)
{
Serial.println("GPIO 4 off");
output0State = "off";
digitalWrite(output0, LOW);
}
// turns the GPIOs on and off
else if (header.indexOf("GET /14/on") >= 0)
{
Serial.println("GPIO 14 on");
output1State = "on";
digitalWrite(output1, HIGH);
}
else if (header.indexOf("GET /14/off") >= 0)
{
Serial.println("GPIO 14 off");
output1State = "off";
digitalWrite(output1, LOW);
}
// turns the GPIOs on and off
else if (header.indexOf("GET /12/on") >= 0)
{
Serial.println("GPIO 12 on");
output2State = "on";
digitalWrite(output2, HIGH);
}
else if (header.indexOf("GET /12/off") >= 0)
{
Serial.println("GPIO 12 off");
output2State = "off";
digitalWrite(output2, LOW);
}
// turns the GPIOs on and off
else if (header.indexOf("GET /5/on") >= 0)
{
Serial.println("GPIO 5 on");
output3State = "on";
digitalWrite(output3, HIGH);
}
else if (header.indexOf("GET /5/off") >= 0)
{
Serial.println("GPIO 5 off");
output3State = "off";
digitalWrite(output3, LOW);
}
// Display the HTML web page
client.println("<!DOCTYPE html><html>");
client.println("<head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">");
client.println("<link rel=\"icon\" href=\"data:,\">");
// CSS to style the on/off buttons
// Feel free to change the background-color and font-size attributes to fit your preferences
client.println("<style>html { font-family: Helvetica; display: inline-block; margin: 0px auto; text-align: center;}");
client.println(".button { background-color: #195B6A; border: none; color: white; padding: 16px 40px;");
client.println("text-decoration: none; font-size: 30px; margin: 2px; cursor: pointer;}");
client.println(".button2 {background-color: #77878A;}</style></head>");
// Web Page Heading
client.println("<body><h1>Home Automation</h1>");
client.println("<body><h2>using Local Web Server</h2>");
// Display current state, and ON/OFF buttons for GPIO 4
client.println("<p>GPIO 4 - State " + output0State + "</p>");
// If the output0State is off, it displays the ON button
if (output0State == "off") {
client.println("<p><a href=\"/4/on\"><button class=\"button\">ON</button></a></p>");
} else {
client.println("<p><a href=\"/4/off\"><button class=\"button button2\">OFF</button></a></p>");
}
// Display current state, and ON/OFF buttons for GPIO 14
client.println("<p>GPIO 14 - State " + output1State + "</p>");
// If the output1State is off, it displays the ON button
if (output1State == "off") {
client.println("<p><a href=\"/14/on\"><button class=\"button\">ON</button></a></p>");
} else {
client.println("<p><a href=\"/14/off\"><button class=\"button button2\">OFF</button></a></p>");
}
// Display current state, and ON/OFF buttons for GPIO 12
client.println("<p>GPIO 12 - State " + output2State + "</p>");
// If the output2State is off, it displays the ON button
if (output2State == "off") {
client.println("<p><a href=\"/12/on\"><button class=\"button\">ON</button></a></p>");
} else {
client.println("<p><a href=\"/12/off\"><button class=\"button button2\">OFF</button></a></p>");
}
// Display current state, and ON/OFF buttons for GPIO 5
client.println("<p>GPIO 5 - State " + output3State + "</p>");
// If the output3State is off, it displays the ON button
if (output3State == "off") {
client.println("<p><a href=\"/5/on\"><button class=\"button\">ON</button></a></p>");
} else {
client.println("<p><a href=\"/5/off\"><button class=\"button button2\">OFF</button></a></p>");
}
client.println("</body></html>");
// The HTTP response ends with another blank line
client.println();
// Break out of the while loop
break;
} else { // if you got a newline, then clear currentLine
currentLine = "";
}
} else if (c != '\r') { // if you got anything else but a carriage return character,
currentLine += c; // add it to the end of the currentLine
}
}
}
// Clear the header variable
header = "";
// Close the connection
client.stop();
Serial.println("Client disconnected.");
Serial.println("");
}
}
Controlling Home Appliances through Web Page
Once the code is uploaded, the NodeMCU Board will try connecting to the Network using the given SSID & Password.
Once connected to the network, the Serial Monitor will display the Local IP Address.
Now you can copy the IP Address and paste it to the web Browser. The Web Browser will display a beautiful webpage.
Now you can send 1 or 0 to turn ON & OFF the home appliances. The ON command is assigned to a certain GPIO PIN as 1 & OFF command as 0.
Apart from all this, if your NodeMCU ESP8266 Board is connected to your PC, the Serial Monitor will display the following message.
Well, that’s all from IoT Based Home Automation using ESP8266 Web Server. If you have any doubts, please comment below.
