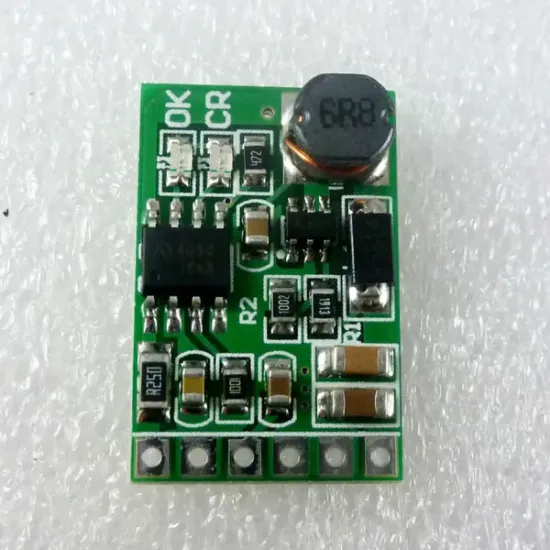

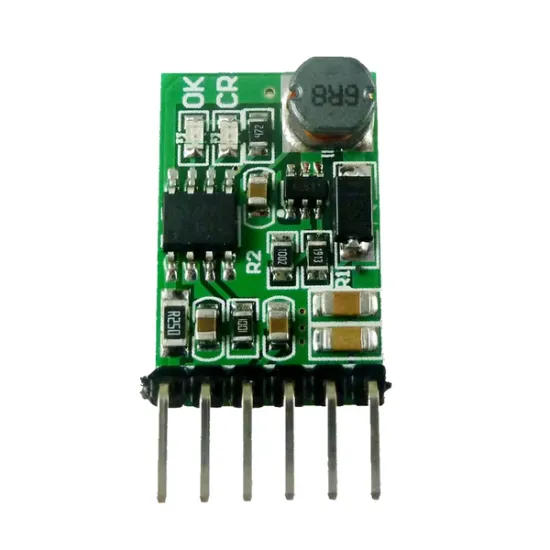

DC-DC Boost Regulator and Charger - 5V

This is a 2-in-1 module for charging and boosting. Perfect for various applications, it offers a single output with a voltage of 5V DC. With an input voltage range of 4.5-8VDC, this module can efficiently charge and boost battery-powered equipment, solar charging setups, and more. The unit has an onboard LED indicator for status updates, it ensures you're always in the know. This module serves as both a battery charger and a DC-DC converter, making it a valuable addition to your toolkit. Whether you're working with lithium batteries, solar setups, or audio/video equipment, this module offers reliability and flexibility in one compact package.

Quick Spec

• Input Voltage: DC 4.5-8V
• Output Type: Single
• Output Current: <1.2A
• Output Frequency: DC-DC
• Output Voltage: 5V DC
• Operating Ambient Temperature: -40 ~ +85°C
• Storage Temperature: -65 ~ +125°C
• Dimensions: 23 x 15.4 x 5.7mm

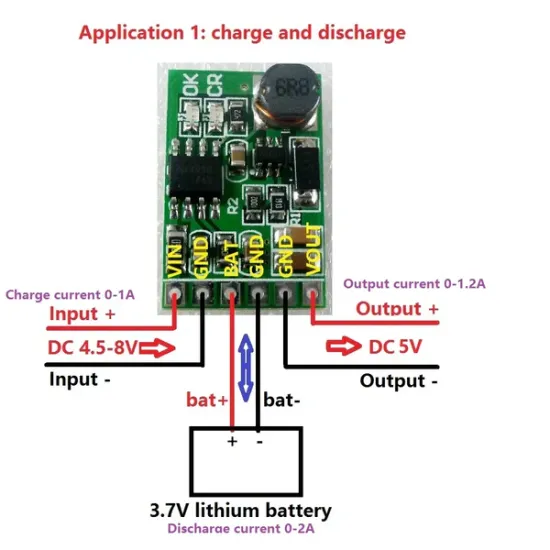

Wiring Diagram

Video
