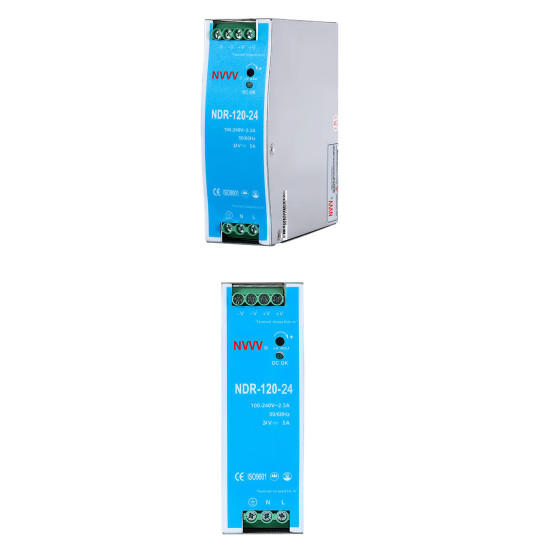

NDR 120W 24V Din Rail-Mounted switching power supply Features 24v 5A
KES 14,500.00
- Stock: In Stock
- Model: NDR 120W 24V
- SKU: 4049

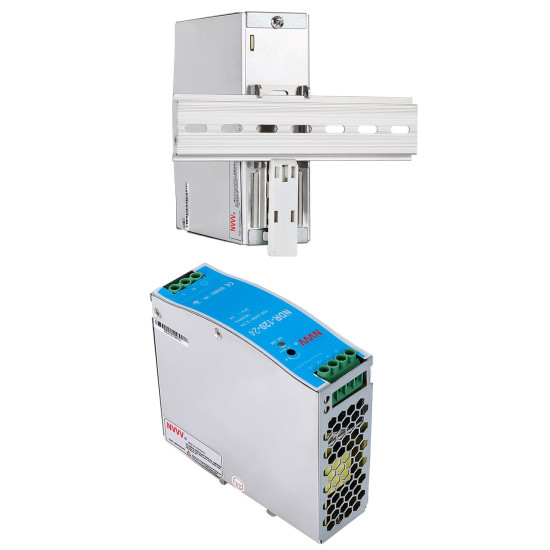

This is an economical and thin 120W DIN-rail power supply that complies with international industrial standards, suitable for installation on TS-35/7.5 or TS-35/15 rails, and the body is designed to be 40mm wide in cabinets that allow space saving. The entire series Both adopt the full range of AC input from 90Vac to 264Vac.
Project | Technical index | |||
| Output | DC voltage | 12V | 24V | 48V |
| Rated current | 10A | 5A | 2.5A | |
| Rated power | 120W | 120W | 120W | |
| Ripple and noise ① | ＜120mV | ＜120mV | ＜150mV | |
| Voltage accuracy | ±2% | ±1% | ||
| Output voltage regulation range | ±10% | |||
| Load adjustment rate | ±1% | |||
| Linear adjustment rate | ±0.5% | |||
| Input | Voltage range | 85-264VAC 47hz-63hz (120vdc-370vdc: DC input can be realized by connecting AC / L +, AC / N (-)) | ||
| Efficiency (typical) ② | ＞86% | ＞88% | ＞89% | |
| Working current | ＜2.25A 110VAC ＜1.3A 220VAC | |||
| Impulse current | 110VAC 20A， 220VAC 35A | |||
| Start, rise, hold time | 500ms、70ms、32ms ：110VAC/500ms、70ms、36ms ：220VAC | |||

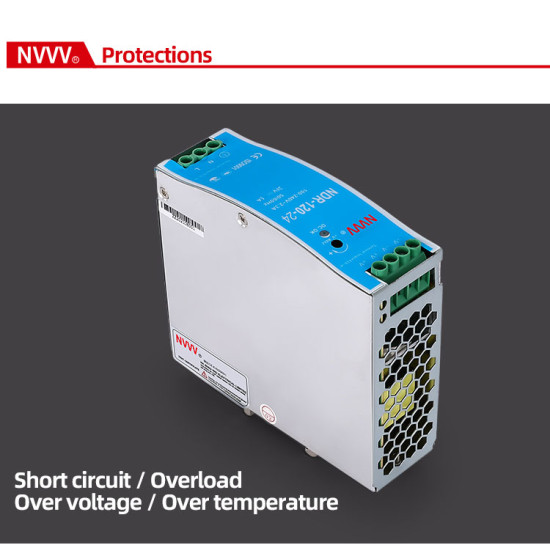

| Protect | overload protection | 105% – 150% type: protection mode: automatic recovery after removing the abnormal condition of constant current mode | ||
| Overvoltage protection | When the output voltage is more than 135%, the output will be turned off. It will recover automatically after the abnormal conditions are removed | |||
| Short circuit protection | +VO When the abnormal condition of output is released, it will recover automatically | |||
| Environmental | Working temperature and humidity | -10℃～+60℃；20%～90RH | ||
| Storage temperature and humidity | -20℃～+85℃；10%～95RH | |||
| Safety/EMC | Withstand voltage | Input output: 3kVac input ground: 1.5kVac output ground: 0.5kvac for 1 minute | ||
| Leakage current | ＜1mA/240VAC | |||
| Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | |||

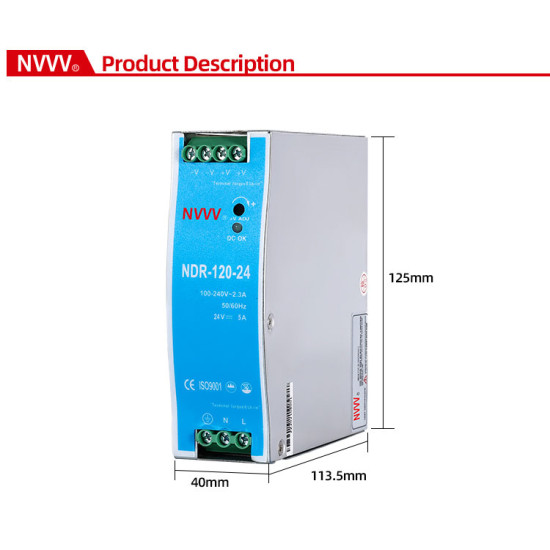

| Other | size | 40*125*113mm | ||
| Net weight / gross weight | 707/750g | |||
