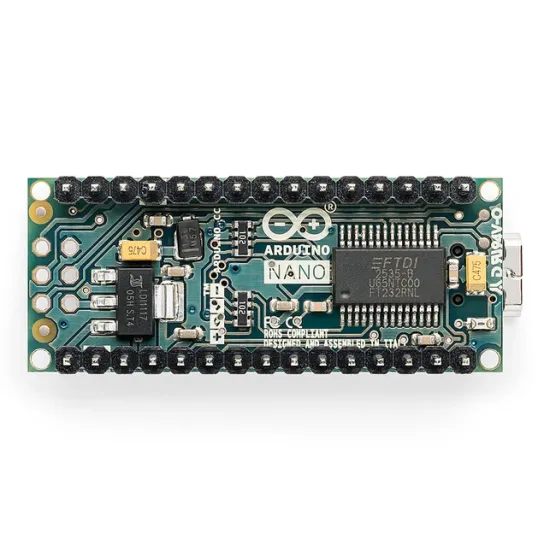

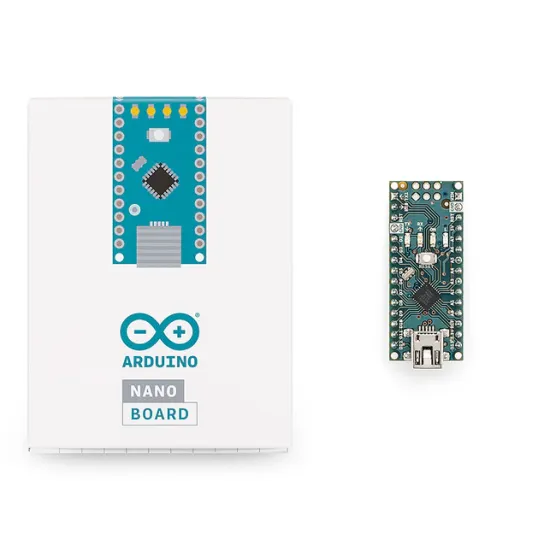

Compact DIP Architecture and Hardware Footprint

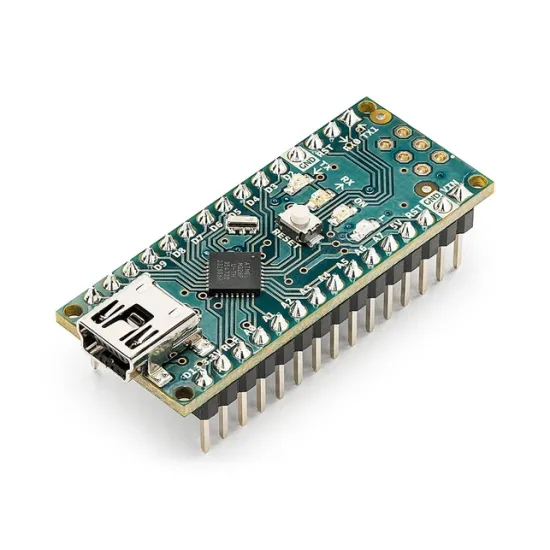

The Arduino Nano is a complete, compact, and breadboard-friendly development board based on the Microchip ATmega328P 8-bit AVR microcontroller. Engineered specifically for space-constrained environments, rapid hardware prototyping, and custom embedded systems, it packs the core functional performance of an Arduino Uno into a tiny Dual In-line Package (DIP) form factor. Featuring an integrated USB interface and dual-row DIP-30 pin headers with 0.1-inch (2.54mm) pitch, the Nano mounts directly onto standard solderless breadboards, perfboards, or surface-mount carrier PCBs.
ATmega328P Processing Core and Memory Architecture
At the heart of the Nano is the high-performance ATmega328P processor running at a clock frequency of 16 MHz via an onboard crystal oscillator. The board incorporates 32 KB of flash memory for program storage (with 2 KB allocated for the pre-flashed bootloader), 2 KB of SRAM for dynamic data allocation, and 1 KB of EEPROM for non-volatile parameter retention during power cycles. This memory architecture supports complex control algorithms, sensor fusion routines, and real-time communications protocols within low-power embedded designs.
Intelligent Power Sensing and Voltage Regulation Topology
Power management on the Arduino Nano is streamlined through an onboard automatic power source selection circuit. The system intelligently detects and routes power from the highest available source, eliminating the requirement for manual jumper configurations. Operating power can be supplied via a Mini-B USB connection, an unregulated 7V to 12V DC external power supply attached to the VIN pin, or a regulated 5V DC supply connected directly to the 5V pin. An integrated low-dropout (LDO) voltage regulator provides a clean 5V rail for the MCU and supplies up to 50mA at 3.3V via the onboard USB-to-UART converter to power sensitive digital peripherals.
Expanded Analog Processing and Peripheral Interfacing

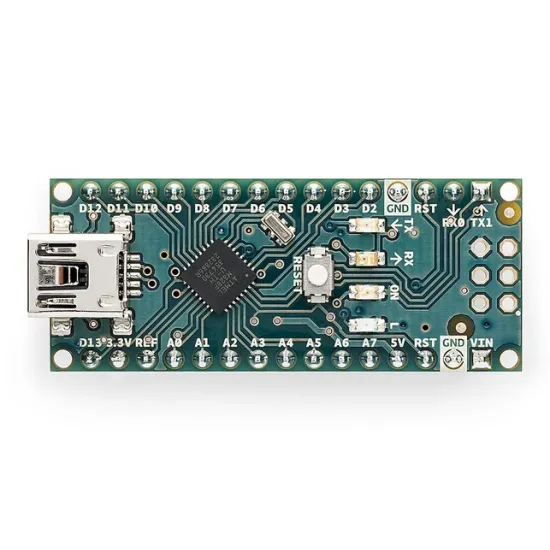

Despite its minimal PCB footprint, the Arduino Nano expands upon traditional Uno pinouts by breaking out 8 analog input pins (A0 through A7), offering two additional 10-bit resolution analog-to-digital converter (ADC) channels for multi-sensor array deployment. Furthermore, the board features 14 digital input/output pins, 6 of which support hardware-driven Pulse Width Modulation (PWM) for precise motor control and LED dimming. Dedicated hardware interfaces include UART (RX/TX) for serial data links, TWI/I2C (A4/SDA and A5/SCL), and SPI (D10/SS, D11/MOSI, D12/MISO, D13/SCK). An Analog Reference (AREF) pin permits custom ADC scaling, while a 6-pin In-Circuit Serial Programming (ICSP) header facilitates direct AVR ISP programmer connections for raw binary flashing.
Embedded Applications and Industrial Integration
The miniature layout, rugged pin design, and comprehensive feature set of the Arduino Nano make it an exceptional candidate for compact robotics, smart wearable devices, IoT edge telemetry nodes, and custom industrial automation controllers. Fully compatible with the cross-platform Arduino IDE and the extensive open-source C/C++ library ecosystem, the Nano facilitates rapid transition from early benchtop testing to final product deployment in demanding hardware environments.
