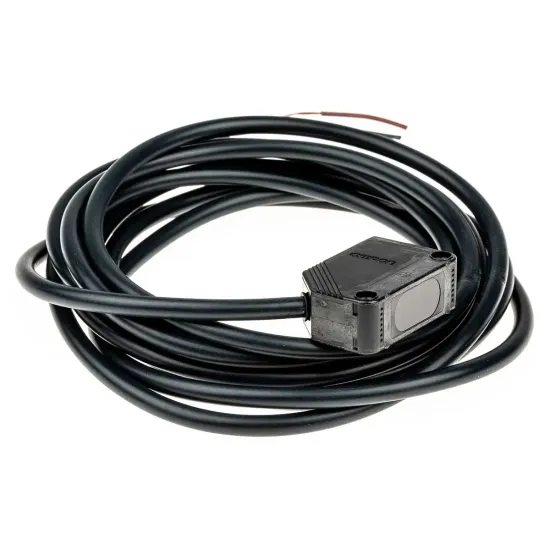

Photoelectric Sensor - Omron E3Z-D62 (Diffuse-Reflective)

Overview and Operating Principle

The Omron E3Z-D62 2M is an industrial-grade, high-performance diffuse-reflective photoelectric sensor designed for non-contact object detection in automated production and material handling environments. Operating on a modulated infrared light emission wavelength of 860 nm, this sensor projects an optical beam toward the detection path and evaluates the intensity of light scattered back by the target object. By eliminating the necessity for a dedicated reflector or sender-receiver pair, the E3Z-D62 2M minimizes physical space requirements and streamlines mechanical installation. It achieves a reliable sensing distance up to 1 meter on standard reflective surfaces, offering consistent performance even with fluctuating background conditions.

Technical Features and Signal Processing

Engineered with advanced optic-electronic integration, the E3Z-D62 features a rapid 1 ms maximum response time for both Light-ON and Dark-ON operating modes. The user can select the desired mode via a built-in potentiometer, enabling simple configuration for diverse control logic requirements. The sensor utilizes an NPN open-collector control output with a maximum load current of 100 mA at 30 VDC, ensuring direct compatibility with PLCs, microcontrollers, and digital acquisition modules. Dynamic interference suppression circuitry guards against optical cross-talk from adjacent photoelectric sensors, while ambient light immunity prevents false triggering under high-intensity plant lighting.

Electrical and Environmental Robustness

Designed to thrive in severe operating environments, the housing is constructed from high-strength polybutylene terephthalate (PBT) paired with a denatured polyarylate lens cover. The unit achieves an IP67 rating according to IEC standards, providing complete protection against dust ingress and resistance to high-pressure water washdown procedures. The unit operates efficiently across a broad supply voltage range of 12 to 24 VDC with low current consumption. The integrated 2-meter pre-wired PVC cable features oil-resistant jacketing to ensure signal integrity near cutting fluids and machine lubricants.

Industrial Applications and Deployment

The versatility of the E3Z-D62 2M makes it a core component across high-speed packaging equipment, automated conveyor sorting, automotive assembly systems, and pharmaceutical manufacturing line inspection. It excels at detecting presence, counting items, verifying carton closure, and triggering downstream actuators. Its precise optical alignment tolerance and reliable background suppression enable consistent target acquisition regardless of surface color, sheen, or texture variations.
