INMP441MEMS microphone module - HINMP441 MEMS High Precision Omnidirectional Microphone Module with a 24-bit I2S interface.

High-Performance Digital Audio Capture Architecture

The INMP441 is a cutting-edge, low-power, omnidirectional MEMS (Micro-Electro-Mechanical Systems) microphone module featuring a direct digital I2S (Inter-IC Sound) output interface. Built with an integrated bottom-port acoustic sensor, low-noise signal conditioning circuitry, a high-precision 24-bit analog-to-digital converter (ADC), anti-aliasing filters, and an advanced power management unit, this breakout board delivers laboratory-grade audio acquisition without requiring external analog preamplifiers, operational amplifiers, or standalone audio codec ICs. By coupling the transducer directly with digital conversion circuitry on the silicon die, the INMP441 eliminates signal degradation, electromagnetic interference (EMI), and ground loop hum typically associated with analog microphone leads. It connects seamlessly to modern embedded systems, digital signal processors (DSPs), and microcontrollers such as the ESP32, STM32, Nordic nRF52 series, and Raspberry Pi via standard hardware I2S or PCM serial audio buses.

Acoustic Performance and Technical Specifications

Engineered for high fidelity and ultra-low power consumption, the INMP441 operates reliably across a supply voltage range of 1.8V to 3.3V while drawing a negligible current of just 1.4 mA in active mode. This low power draw makes it an exceptional choice for battery-powered Internet of Things (IoT) nodes, portable acoustic monitoring stations, and energy-conscious wearable electronics. The device achieves a high Signal-to-Noise Ratio (SNR) of 61 dBA and an accurate sensitivity rating of -26 dBFS at 1 kHz with a 94 dB SPL input. Its broad, exceptionally flat frequency response spans from 60 Hz to 15 kHz, capturing natural human voice formants, delicate acoustic nuances, and ambient environmental soundscapes with extreme fidelity. An integrated Power Supply Rejection (PSR) ratio of -75 dBFS effectively isolates the acoustic signal from electrical noise caused by switched-mode power supplies, wireless transmissions, and digital clock ripple on shared PCB power rails.

Hardware Pinout and Direct Digital I2S Wiring

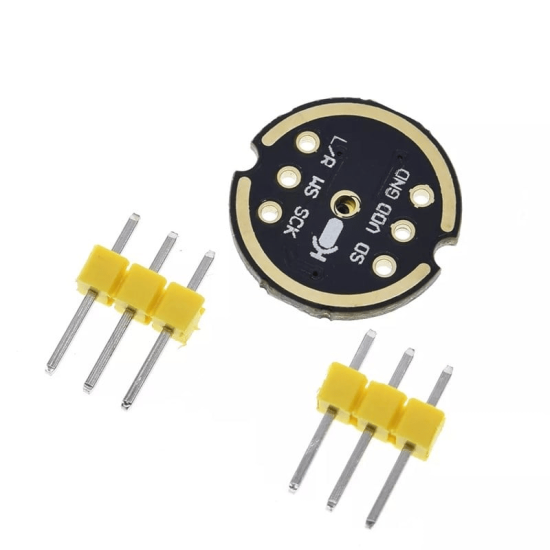

The module exposes a breadboard-compatible 6-pin header with a standard 2.54mm (0.1 inch) pitch for rapid prototyping and hardware integration. The pin layout includes SCK (Serial Data Clock / Bit Clock input), SD (Serial Data Output), WS (Word Select / Left-Right Frame Clock), L/R (Channel Select Input), VDD (1.8V to 3.3V DC Power Input), and GND (System Ground). The L/R pin allows hardware configuration of the audio frame output: pulling L/R to ground outputs audio data on the left channel of the I2S frame, while tying it to VDD routes data to the right channel. Tying two INMP441 modules to a single shared I2S clock line (SCK and WS) with opposite L/R configurations enables true spatial stereo recording using a single digital interface peripheral on the host processor.

Embedded Integration and Advanced Application Use-Cases

Owing to its digital output stability, wide dynamic range, and compact surface-mount footprint, the INMP441 is tailored for voice-activated smart home interfaces, voice assistant gateways (such as Alexa, ESP-ADF, and Home Assistant nodes), hands-free teleconferencing gear, and acoustic surveillance systems. It excels in machine learning at the edge (TinyML), providing high-resolution digital audio feeds to neural networks for real-time keyword spotting (KWS), voice biometrics, anomaly detection in industrial machinery, and environmental noise mapping. Whether used in wearable devices, smart security sensors, or educational audio engineering projects, the INMP441 offers a complete digital audio capture solution with minimal hardware complexity.
