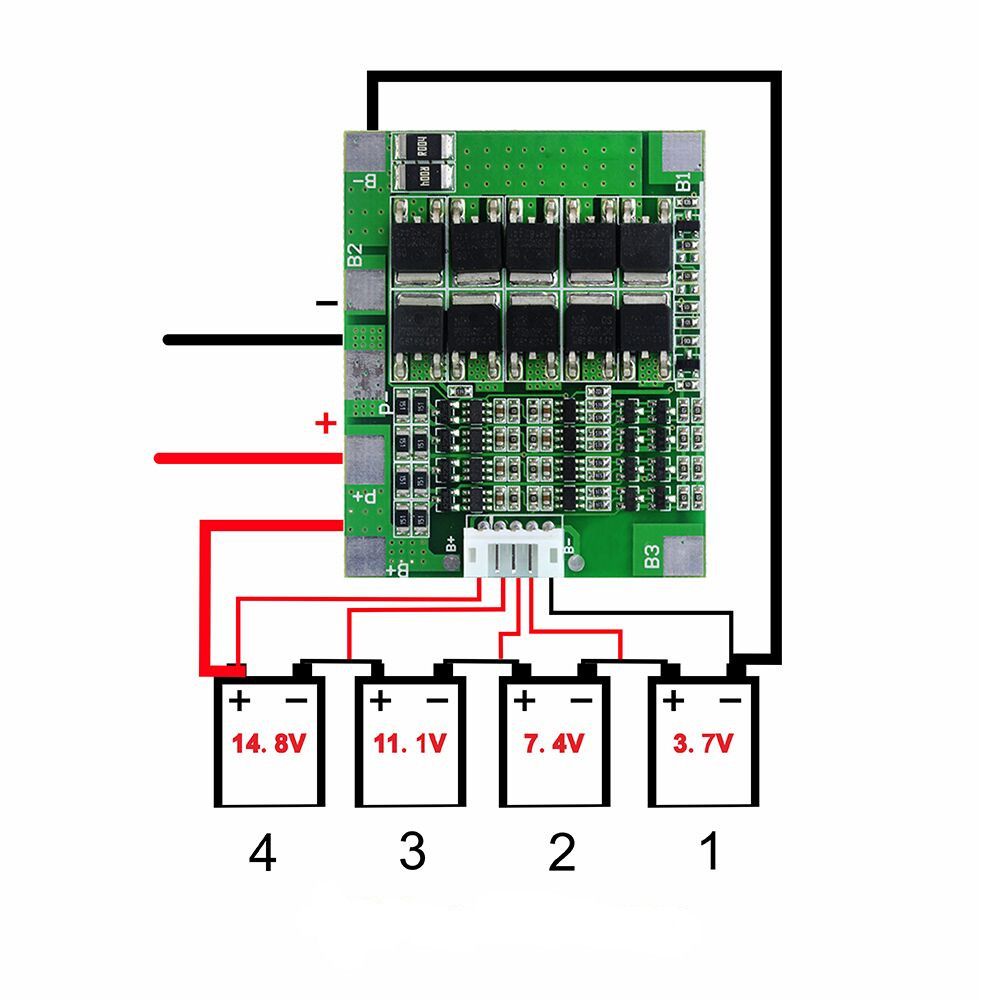

Name:Protection board
Model:4S30A
Specifications
Over charge detection voltage: 4.28+ 0.05 V
Over charging voltage: 4.095-4.195V
Over discharge voltage: 2.55±0.08
Over charge detection delay time 0.1s
Temperature range -30-80
Short circuit detection delay time: 100ms
Over current detection delay time: 500 ms
Balanced current: 60mA
Working current: 30A
Over current: 60A
Short circuit protection function: there is, disconnect the load can be self recovery.
Size:45x56mm
Main function:
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function, balance.
