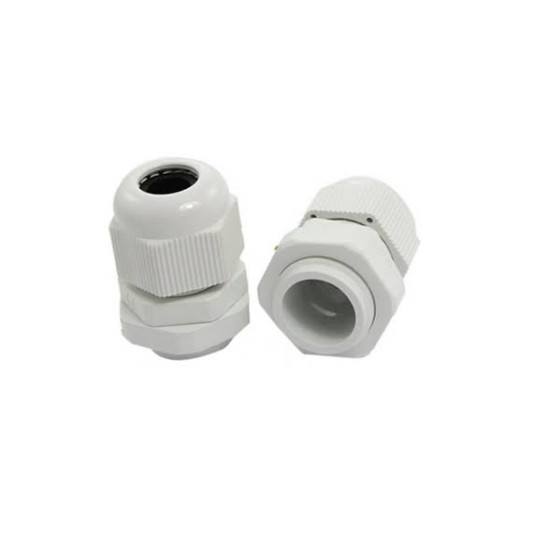

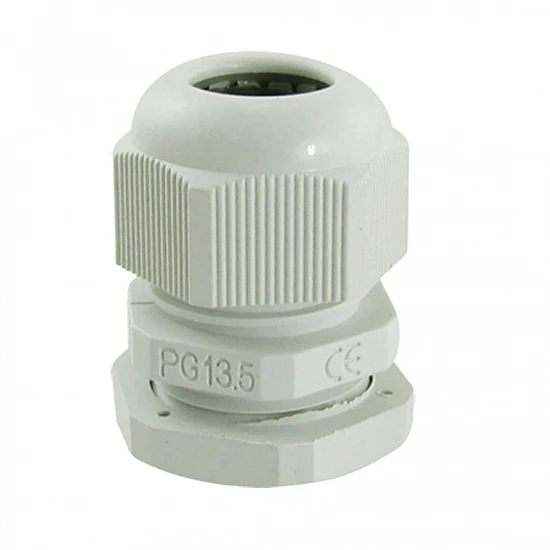

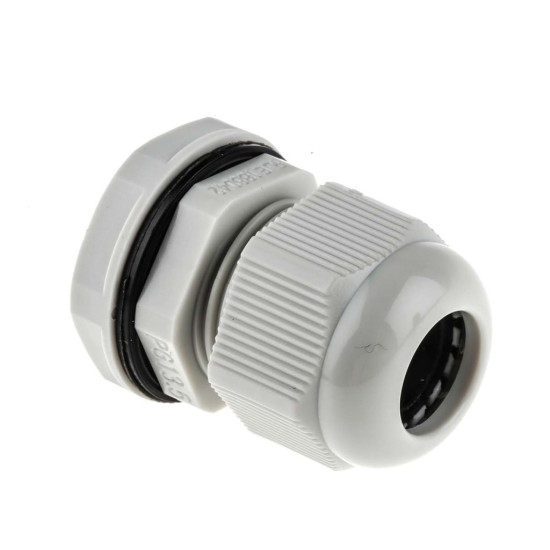

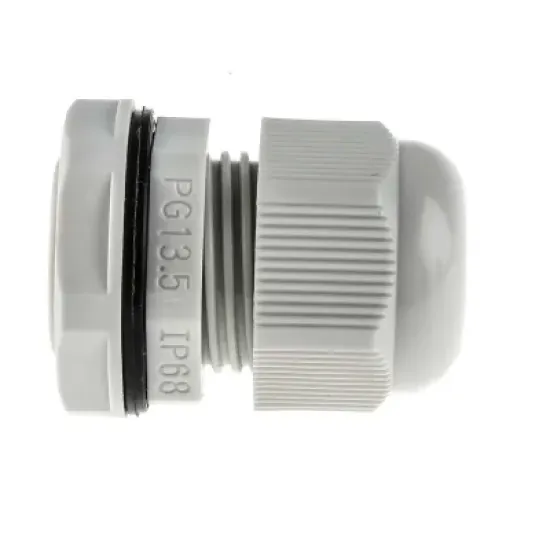

PG13.5 Waterproof Cable Gland with Locknut

Product Overview and Engineering Design

The PG13.5 Waterproof Cable Gland is an industrial-grade wiring pass-through fitting engineered to deliver uncompromising cable retention, mechanical strain relief, and environmental isolation. Designed to interface directly with control boxes, junction cabinets, and high-vibration machinery, this component creates a robust hermetic seal around circular flexible cables ranging from 6.0 mm to 12.0 mm in diameter. Built according to historical DIN 40430 dimensional tolerances, the PG13.5 form factor remains an enduring staple in European and global automation retrofits, offering structural durability where failure from moisture ingress, oil saturation, or mechanical pull-out cannot be tolerated.

At its functional core, the assembly comprises five critical structural elements: the external domed compression nut, an internal segmented collet claw, a high-elasticity elastomeric sealing ring, the primary gland body featuring an external male thread with hexagonal driving flats, and a matching locknut mated with a flat washer. When the compression nut is torqued down, it drives the internal collet fingers inward along a uniform radial plane, uniformly squeezing the elastomeric insert against the cable jacket. This action distributes mechanical clamping forces symmetrically around the circumference of the cable, mitigating localized dielectric insulation crushing while generating maximum tensile pull-out resistance.

Material Science and Environmental Durability

Constructed entirely from premium-grade Polyamide 66 (PA66, commonly referred to as Nylon 6/6), the gland body and locknut provide superior mechanical strength, stiffness, and resistance to impact fatigue. PA66 is widely recognized in electrical engineering for its exceptional dimensional stability under mechanical stress, high dielectric breakdown voltage, and intrinsic resistance to thermal degradation. Rated to UL 94V-2 flammability standards, the material will self-extinguish within predetermined safety margins in the event of an electrical flare or adjacent flashover. Furthermore, the material compound is stabilized against long-term ultraviolet (UV) degradation, making it suitable for unshaded, direct-sunlight outdoor installations without premature embrittlement or micro-cracking.

The internal compression seal and the flat face-sealing washer are molded from Nitrile Butadiene Rubber (NBR) with a nominal Shore A durometer hardness optimized for compliant sealing under moderate axial torque. NBR provides exceptional chemical resistance against mineral oils, synthetic lubricants, hydrocarbon fuels, water, hydraulic fluids, and mild acidic cleaning solutions. Operating across a continuous thermal span of -40°C to +100°C (-40°F to +212°F), with short-term intermittent thermal excursion tolerance up to +120°C (+248°F), this cable gland prevents environmental migration into delicate low-voltage logic circuitry, embedded sensors, or heavy 400V power infrastructure.

Mechanical Specifications and Dimensional Metrics

The gland conforms precisely to the German standard DIN 40430 PG (Panzergewinde) 13.5 profile. The male interface thread exhibits a major nominal outer diameter of 20.4 mm with a thread pitch of 1.411 mm (18 threads per inch) and an overall threaded barrel length of 9.0 mm. This 9 mm thread length allows straightforward mounting through thin-sheet metal enclosures (such as 1.5 mm mild steel or aluminum) using the included PA66 locknut, as well as direct tapping into thick cast-aluminum or polycase bulkhead walls without risking thread strip-out. The integrated outer hex drive on the main body measures 24.0 mm across the flats, and the domed compression nut measures 24.0 mm, allowing standard calibrated open-ended or adjustable torque wrenches to achieve the recommended 2.5 Nm to 3.5 Nm final assembly torque.

When torqued to manufacturer specifications over an approved circular cable within the 6.0 mm to 12.0 mm diameter spectrum, the unit achieves an Ingress Protection rating of IP68 (tested up to a submersion depth of 5 meters / 0.5 bar hydrostatic pressure for 1 hour) and NEMA 4X equivalent protection. This ingress barrier ensures that pressurized washdown streams, particulate dust clouds, splashing chemicals, and total temporary submersion will not defeat the enclosure boundary.

Application Use-Case

1: Industrial PLC Control Cabinets and VFD Drives

In modern industrial manufacturing lines, programmable logic controllers (PLCs) and variable frequency drives (VFDs) are housed within centralized steel enclosures. Routing shielded multi-conductor cables, such as 4-core 1.5 mm² shielded motor leads or 8-core sensor trunk lines, requires solid ingress management to prevent conductive metallic machining dust and ambient plant humidity from entering the enclosure. The PG13.5 gland securely anchors incoming high-flex cabling, insulating internal terminations from terminal block stress caused by external cable vibration.

2: Outdoor Solar Photovoltaic (PV) Combiner Boxes

Solar energy installations subject electrical balance-of-system hardware to extreme diurnal thermal cycling, high wind vibration, and constant UV radiation. Combining string feeds through an IP68-rated PG13.5 gland guarantees that morning dew, heavy rainfall, and wind-driven sand do not enter combiner enclosures. The NBR sealing ring prevents capillary water draw along the outer cross-linked polyethylene (XLPE) cable jackets, safeguarding internal DC disconnects and string fuses against corrosion.

3: Automated Robotics and Articulated Arm Feedthroughs

Continuous dynamic flexing along robotic work cells transfers massive rotational and torsional shock directly back to cabinet entry points. Installed on dynamic cable tracks and junction boxes at robot articulation bases, the PG13.5 gland acts as a primary mechanical strain relief mechanism. The interior multi-finger collet grips the outer jacket of high-flex continuous-duty PUR (polyurethane) control cables uniformly, absorbing shock and preventing individual wire conductors from backing out of their screw or spring-cage terminal blocks.

4: Marine Electronics and Salt-Spray Exposure Systems

Marine environments require absolute resistance to galvanic corrosion and ionic contamination. Unlike brass or stainless-steel glands which can suffer from galvanic pitting or crevice corrosion when interfacing with dissimilar enclosure metals, the all-nylon PA66 build is entirely non-conductive and immune to salt corrosion. These glands protect VHF radio transceivers, NMEA 2000 backbone junction enclosures, depth sounders, and bilge pump power switches mounted on commercial and recreational watercraft.

5: Municipal Wastewater Treatment Monitoring Instrumentation

Wastewater processing facilities expose electrical infrastructure to severe biochemical hazards, including hydrogen sulfide (H2S), methane, and aggressive wash-down chemicals. The chemical compatibility of NBR and PA66 ensures that dissolved gasses and corrosive chemical splashes do not degrade the gland assembly. Dissolved oxygen probes, level sensors, and flow meters routing 4-20mA current loop cabling through basin walls utilize the PG13.5 gland to sustain a dry atmospheric microclimate within sensitive junction modules.

6: Electric Vehicle (EV) Charging Infrastructure

Commercial Level 2 and DC fast-charging auxiliary systems rely on auxiliary sensors, RFID authentication readers, and cellular communication modems housed in outdoor pedestals. Ground-level mounting leaves these pedestals vulnerable to rain splatter, lawn sprinkler spray, and street salt. Employing the PG13.5 gland guarantees sealed integration of incoming CAT5e/CAT6 outdoor Ethernet or low-voltage DC auxiliary power cables, maintaining uncompromised operational uptime regardless of weather extremes.

7: Exterior Architectural LED and DMX512 Lighting Rigs

Exterior building facade lighting, stage rigs, and municipal landscape lighting rely on interconnected DMX512 data cables and three-conductor line-voltage drops. Because landscape fixtures are frequently surrounded by saturated soil or subjected to direct high-pressure hose cleaning, the PG13.5 gland prevents water ingress that would otherwise cause ground-fault interrupters (GFIs) to trip. Its compact outer dimensions allow clean integration into small-footprint cast-aluminum lighting housings.

8: Food and Beverage Wash-Down Processing Enclosures

Sanitary food processing environments require daily Clean-in-Place (CIP) regimes involving high-temperature, high-pressure hot water and caustic detergent washes. The PG13.5 gland provides an impervious mechanical barrier that repels water jets without loosening. The smooth, non-porous exterior surface of molded PA66 resists mold and bacterial colonization, while the absence of sharp crevices facilitates rapid, complete washdown cleaning.

Cable Pass-Through Architecture and Wiring Pinout Reference

The PG13.5 gland functions as an unsegmented bulk pass-through, accepting pre-jacketed multi-conductor cables without requiring physical termination pins inside the gland itself. To ensure maximum sealing integrity, technicians must strip the outer cable jacket only *after* the cable has passed entirely through the gland body into the enclosure interior. Stripping the jacket before the gland exposes individual insulated conductors to the sealing claw, which creates micro-channels between the wires and completely breaches the IP68 seal.

For common single-phase AC applications, a standard 3-conductor round power cable (comprising Line on Pin 1 / Black or Brown, Neutral on Pin 2 / White or Blue, and Protective Earth on Pin 3 / Green or Green-Yellow) passes as a complete round assembly through the gland. For high-speed industrial communications, an 8-conductor shielded industrial Ethernet cable (featuring EIA/TIA-568B pinout: Pin 1 White/Orange, Pin 2 Orange, Pin 3 White/Green, Pin 4 Blue, Pin 5 White/Blue, Pin 6 Green, Pin 7 White/Brown, Pin 8 Brown) maintains its outer circular jacket throughout the mechanical clamping zone, preserving internal twisted-pair geometry and shielding right up to the enclosure's internal RJ45 or M12 bulkhead patch interface.

Installation, Torque Management, and Maintenance

Achieving a verified IP68 seal requires correct installation practices. Prepare a clearance hole measuring 20.5 mm to 21.0 mm in the enclosure wall. Seat the flat NBR washer flush against the outside shoulder of the gland body, insert the threaded shank through the hole, and thread the PA66 locknut onto the interior side. Tighten the locknut to 3.0 Nm using a standard 24 mm wrench. Feed the uncut round cable through the domed nut, internal collet, and body until adequate inner lead length is reached. Tighten the outer domed compression nut clockwise until the NBR seal firmly compresses against the cable jacket, typically indicated by a tactile stop and a final torque of 2.5 to 3.5 Nm. Periodically inspect the seal during routine plant maintenance to ensure sustained elasticity in vibrating environments.
