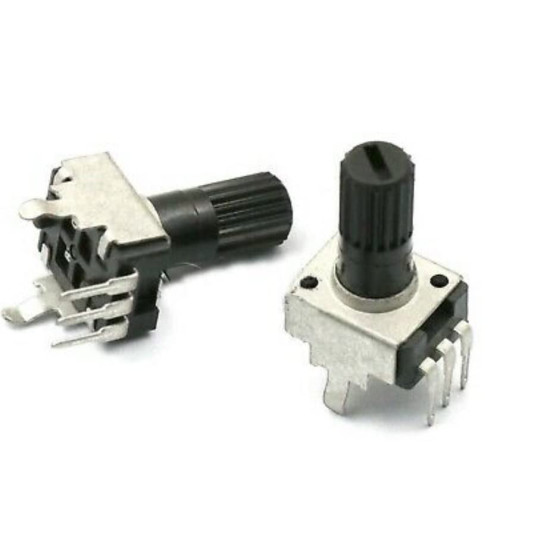

B503 50K Ohm Rotary Potentiometer

Product Overview

The B503 50K Ohm Linear Taper Rotary Potentiometer is an industry-standard variable resistor engineered for precise signal attenuation, voltage division, and analog control across diverse electronic circuits. Featuring a linear taper curve (B-type), this component delivers a uniform 1:1 proportional relationship between shaft rotation angle and electrical resistance change. This linear behavior makes it exceptionally well suited for precision laboratory gear, audio processing equipment, and micro-controller user interface dials.

Technical Architecture and Specifications

Constructed around a high-grade carbon film resistive element housed in a durable steel casing, the B503 provides a nominal resistance of 50,000 ohms with a standard tolerance of plus or minus 20 percent. The device features a full 300-degree total rotational angle with a 280-degree effective electrical angle. It features a 6mm diameter split-knurled shaft measuring 15mm in length that effortlessly accepts common press-fit indicator knobs. Equipped with a threaded M7 mounting bushing and standard 3-pin solder lug terminals, this potentiometer facilitates both rigid panel-mount installations and dependable point-to-point or PCB terminal wiring. It supports a maximum operating voltage of 200V AC and a power dissipation rating of 0.125W.

Applications and Integration

Engineered for high-frequency operational adjustments, this component excels in low-noise audio circuit design including synthesizer parameter controls, passive tone networks, active filter gain stages, and audio mixer consoles. In digital electronics and embedded systems, the B503 serves as a reliable analog input transducer when wired as a 0V to 5V voltage divider feeding ADC interface pins on platforms like Arduino, ESP32, and Raspberry Pi Pico.
