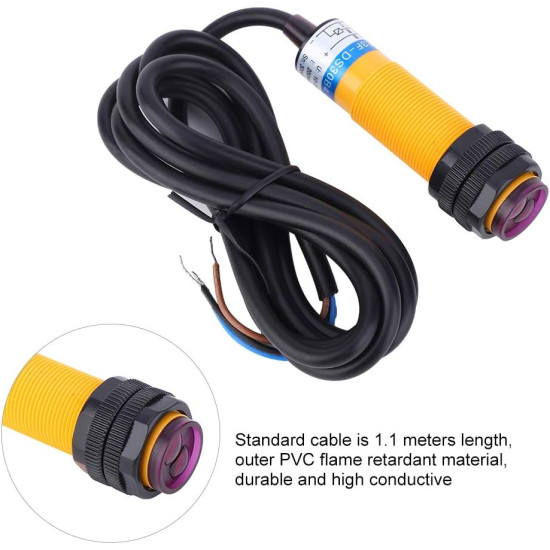

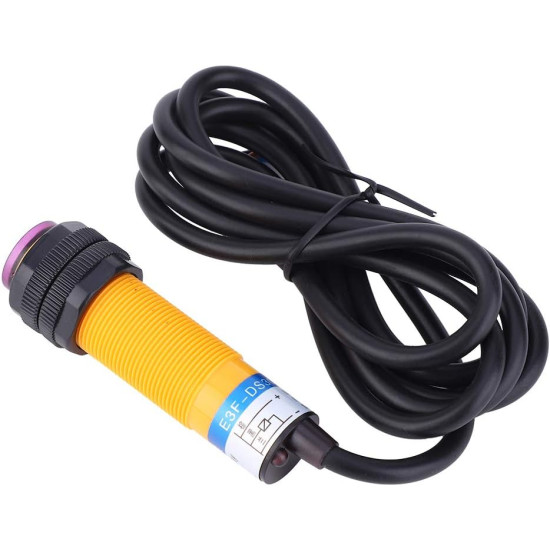

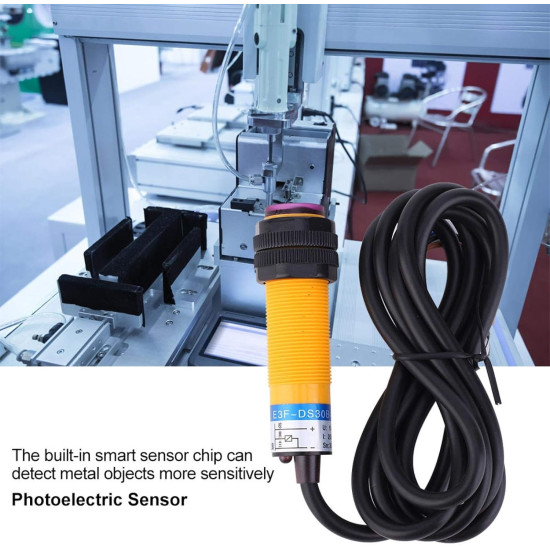

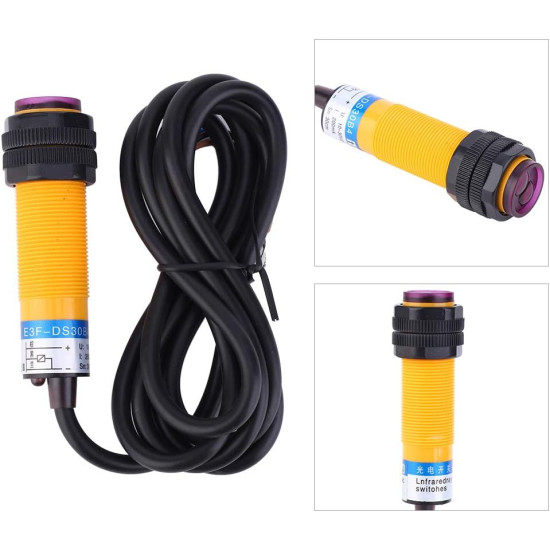

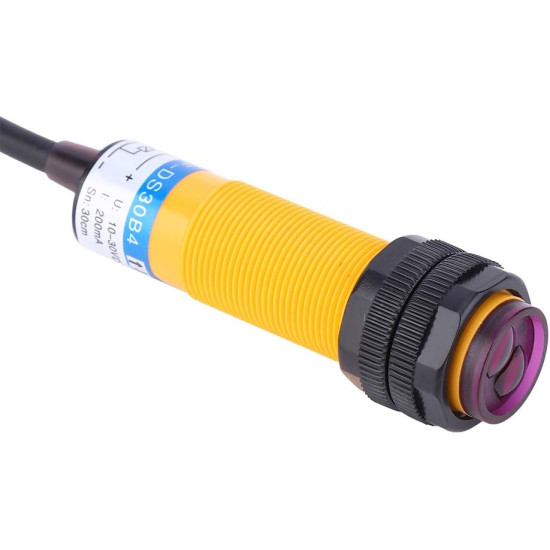

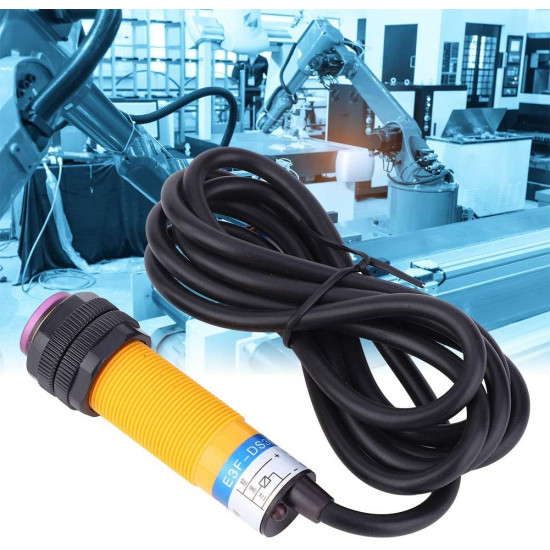

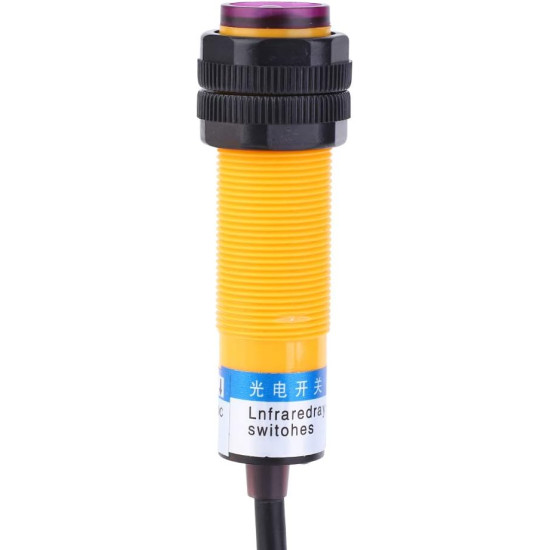

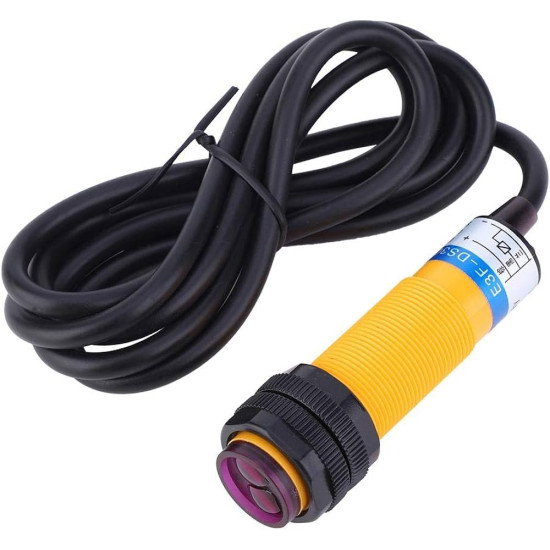

ER-DS30B4 Diffuse Reflection Photoelectric Switch Sensor 3 Wires

Product Overview and Industrial Engineering Excellence

The ER-DS30B4 M18 Diffuse Reflection Photoelectric Switch Sensor is an essential component designed for precision non-contact object detection across automated manufacturing environments, material handling networks, and industrial robotics. Housed in a standardized threaded M18 cylindrical body, this industrial-grade optoelectronic sensor combines light emitter and receiver circuits within a single compact chassis. By eliminating the necessity for a separate reflector unit or emitter-receiver alignment pairs, the ER-DS30B4 significantly streamlines setup procedures, saves critical space inside automated machinery, and reduces hardware overhead.

Constructed with an impact-resistant Acrylonitrile Butadiene Styrene (ABS) housing and an optical-grade Polymethyl Methacrylate (PMMA) lens, the ER-DS30B4 delivers superior protection against industrial wear, vibration, dust, and moisture ingress rated to IP67 standard. The internal electronic circuitry features solid-state reliability engineered to provide immunity against electromagnetic interference (EMI), line noise, and ambient lighting fluctuations, ensuring unbroken operational continuous performance in harsh plant environments.

Optoelectronic Working Principle and Sensing Dynamics

The operational core of the ER-DS30B4 sensor operates via diffuse reflection technology. The integrated emitter uses an infrared Light Emitting Diode (LED) emitting at a modulated wavelength of 660 nanometers. This invisible infrared beam is targeted forward into the sensing zone. When an opaque or sufficiently reflective target object enters the detection field (ranging from 5 cm up to 30 cm), a fraction of the emitted infrared beam bounces back off the surface of the object in a scattered, diffuse manner.

The sensor high-sensitivity phototransistor optical receiver gathers this reflected light, converting the optical signal back into an electrical photocurrent. Internal signal-conditioning electronics compare the strength of this incoming light against a calibrated threshold. Upon exceeding the trigger point, an internal solid-state PNP transistor switches output states. Because the light source uses high-frequency pulse modulation, the internal receiver selectively amplifies only signals pulsing at the specific frequency of the emitter. This synchronous detection scheme effectively screens out ambient sunlight, factory fluorescent lighting, and stray thermal radiation, maintaining stable detection characteristics regardless of environmental lighting variations.

3-Wire PNP NO Pinout and System Wiring Architecture

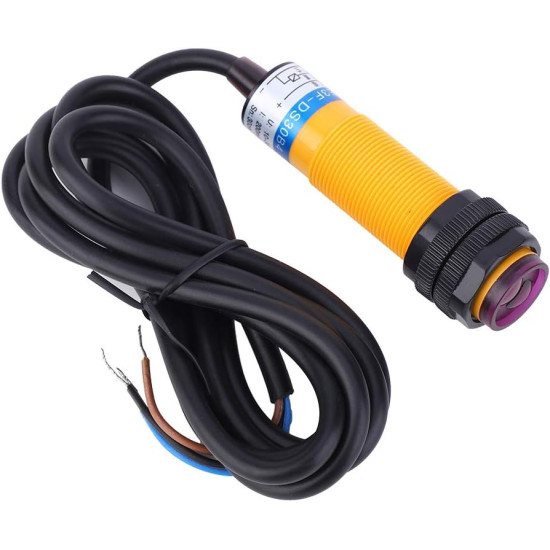

The ER-DS30B4 utilizes an industry-standard 3-wire Direct Current (DC) configuration with a PNP Normally Open (NO) solid-state output switch. Understanding the precise wiring setup ensures seamless integration into Programmable Logic Controllers (PLCs), microcontrollers, relay driver modules, and industrial control panels.

Brown Wire - Power Supply Positive (+VCC)

The brown lead connects to the positive terminal of the DC power supply. The ER-DS30B4 accepts a wide operating input voltage range spanning from 6V DC up to 36V DC (standard operational voltage is typically 12V DC or 24V DC). The internal voltage regulator conditions incoming power to safeguard sensitive optoelectronics against input voltage ripple and minor line variations.

Blue Wire - Power Supply Ground (0V / GND)

The blue lead provides the common ground reference and completes the DC power circuit. It connects directly to the 0V DC negative terminal of the main power supply unit.

Black Wire - Control Signal Output (PNP NO / Load Connection)

The black lead acts as the switched PNP signal line. In a PNP (sourcing) topology, when no target object is detected within the 5 cm to 30 cm range, the output remains in an OPEN state, resulting in 0V output on the signal line. When an object breaks into the sensing beam, the internal PNP transistor closes, sourcing positive voltage (+VCC minus internal switching drop) directly to the black signal wire. The load (such as a PLC digital input channel, relay coil, or counter module) must be connected between the black signal wire and the blue ground wire.

Advanced Internal Protection Circuits

Industrial electrical lines are susceptible to transient voltage spikes, accidental reverse wiring, and short circuits. The ER-DS30B4 incorporates comprehensive circuit protection directly onto its internal PCB:

1. Reverse Connection Protection: Diode networks prevent component damage if the positive and ground power wires are accidentally reversed during installation.

2. Surge Suppressor Circuitry: Internal transient voltage suppressors clamp high-voltage inductive surges often created by nearby heavy electric motors, solenoid valves, or magnetic contactors.

3. Short-Circuit Protection: The PNP output stage includes current-limiting features to defend the switching transistor against permanent damage if the signal wire is connected directly to ground or overloaded beyond its maximum 300 mA continuous output rating.

In-Depth Industrial Application Use-Cases

1. High-Speed Conveyor Belt Object Counting

In logistics centers and bottling lines, the ER-DS30B4 is mounted horizontally along conveyor sidewalls to detect passing boxes, cartons, or bottles without touching them. Its fast 1.5 millisecond response time enables accurate high-frequency counting up to 300 objects per second, preventing inventory discrepancies and ensuring smooth line flow monitoring.

2. Automated Packaging Machine Carton Detection

Within automatic cartoning and sealing systems, the sensor verifies the presence of an open cardboard box before triggering glue dispensers or filling nozzles. If a box is missing or misaligned on the index table, the PNP NO output remains off, safely halting the dispensing mechanism to avoid material waste and machine fouling.

3. Robotic Arm End-Effector Workpiece Verification

Integrated directly onto robotic pick-and-place grippers, the lightweight and compact M18 housing allows the robot controller to verify whether a workpiece is physically present between the jaw fingers before executing movement routines. Non-contact sensing prevents surface scratches on delicate painted, polished, or plastic parts.

4. Automated PCB Edge and Alignment Sensing in SMT Lines

During surface-mount technology (SMT) assembly, printed circuit boards move along precision track systems. The ER-DS30B4 senses the leading edge of incoming fiberglass PCBs to trigger stop-pins or camera alignment vision systems, ensuring sub-millimeter positional repeatability for component placement.

5. Liquid Container Cap Detection and Quality Inspection

In beverage and pharmaceutical capping lines, the sensor is calibrated to inspect the upper neck zone of passing bottles. If a cap is missing, the reduced reflection back to the receiver prevents output activation, allowing downstream pneumatic reject arms to immediately push incomplete products off the main line.

6. Material Feed and Slack Control in Printing Press Machinery

In web handling applications involving paper, film, or textile rolls, the ER-DS30B4 measures loop height and material slack. By detecting when the drooping loops of material cross the 30 cm threshold, the sensor sends speed correction signals to feed-roll motor drives to maintain uniform tension.

7. Automatic Door and Industrial Gate Access Control

Mounted near industrial speed-doors or automated barrier gates, the sensor detects approaching forklifts, guided vehicles (AGVs), or personnel. Triggering the gate opening circuit prior to physical approach streamlines traffic flow while preventing collision damage to expensive entrance structures.

8. Palletizer Height and Position Indexing

In warehouse stacking operations, the ER-DS30B4 provides reliable positioning data for automated palletizing lifts. Sensing each added layer of boxes allows the master controller to incrementally lower the hydraulic or servo platform, maintaining a constant height reference for incoming robotic loaders.

Installation Guidelines and Operational Best Practices

To ensure optimal long-term detection accuracy, install the sensor securely using the provided M18 lock nuts into a rigid mounting bracket. When detecting targets with highly polished metallic or mirror-like surfaces, mount the sensor at a slight tilt angle (approx. 5 to 10 degrees relative to target perpendicular) to avoid specular reflections overloading the optical receiver.

Clean the PMMA front lens periodically with a soft, lint-free cloth and mild cleaning solution if operating in dusty environments. Ensure operating temperatures remain within the -30 degrees C to +65 degrees C range, avoiding direct water jet immersion beyond IP67 limits.

Packages Include

1 x ER-DS30B4 M18 Diffuse Reflection Photoelectric Switch Sensor PNP NO

2 x M18 Threaded Mounting Lock Nuts
