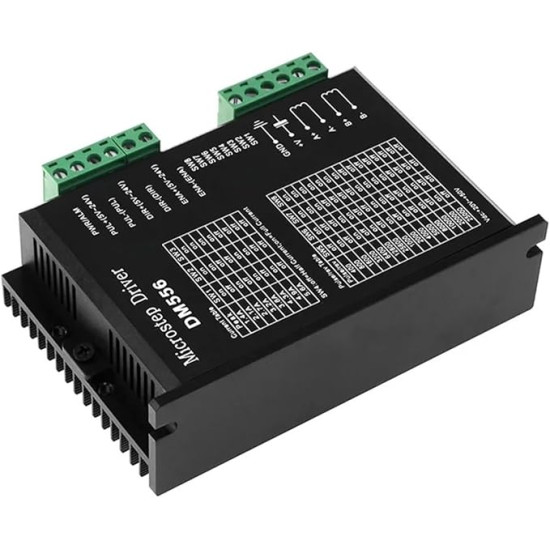

- Model: DM556
- SKU: 4053
Advanced 32-Bit DSP Stepper Control Technology
The DM556 is a high-performance, fully digital 2-phase stepper motor driver powered by a 32-bit Digital Signal Processor (DSP) core running advanced current vector control algorithms. Designed for driving 2-phase hybrid stepping motors across NEMA 17, 23, and 34 frame sizes, this driver delivers unprecedented motion smoothness and torque performance. Its digital control architecture eliminates mid-range instability and anti-resonance issues typical of traditional analog drives, allowing motors to operate with significantly lower acoustic noise and reduced heating.
Self-Test and Adaptive Auto-Configuration
Equipped with an online adaptive PID motor parameter matching system, the driver automatically conducts an internal self-test upon power-up to calculate optimal current loop parameters for the connected motor. This ensures maximum dynamic torque and optimal transient response across varying operating speeds without requiring manual parameter tuning. The integrated DIP switches allow technicians to easily configure dynamic output currents ranging from 1.4A to 5.6A peak, as well as microstep resolutions up to 25600 steps per revolution.
Optically Isolated Control and Thermal Efficiency
The control signal interfaces for Pulse (PUL), Direction (DIR), and Enable (ENA) feature high-speed optical isolation to shield control electronics from electromagnetic interference and voltage spikes. Capable of processing pulse input frequencies up to 200 kpps, the driver provides rapid response times for precision positioning. Furthermore, an automatic standstill current reduction feature (SW4 configurable) drops motor holding current by 50 percent when idle, conserving power and preventing unnecessary motor overheating during prolonged pauses.
Industrial Applications and Protection Circuitry
Built for harsh industrial environments, the drive incorporates robust hardware protection against over-voltage, under-voltage, and output over-current conditions. It operates reliably on an unregulated DC supply voltage between 20 VDC and 50 VDC. The DM556 is an ideal motion control component for automated packaging machinery, high-speed labeling systems, CNC milling and engraving machines, pick-and-place equipment, laser cutters, and industrial plotters requiring smooth motion, precise accuracy, and low-vibration operation.
