- Stock: In Stock
- Model: UNI-T UT205A+ 1000A AC Digital
- Weight: 235.00g
- Dimensions: 242.00mm x 76.50mm x 52.00mm
- SKU: 4081
Industrial-Grade 1000A AC Measurement Performance

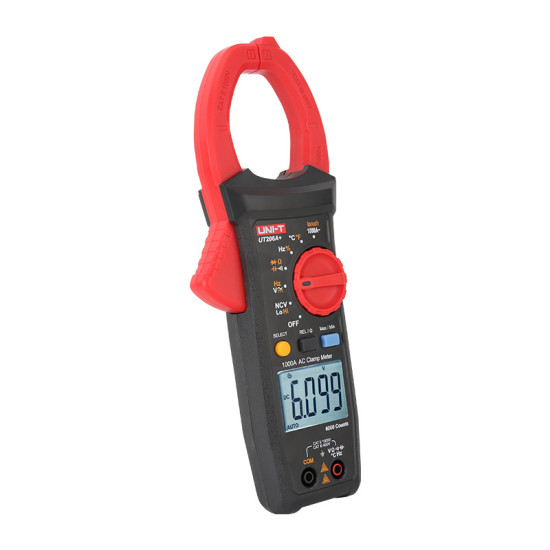

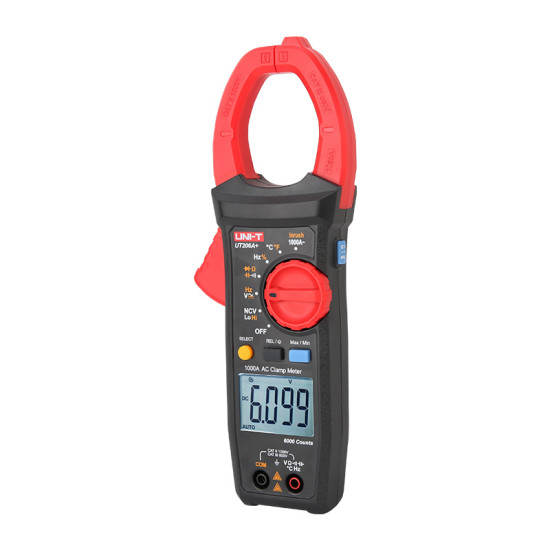

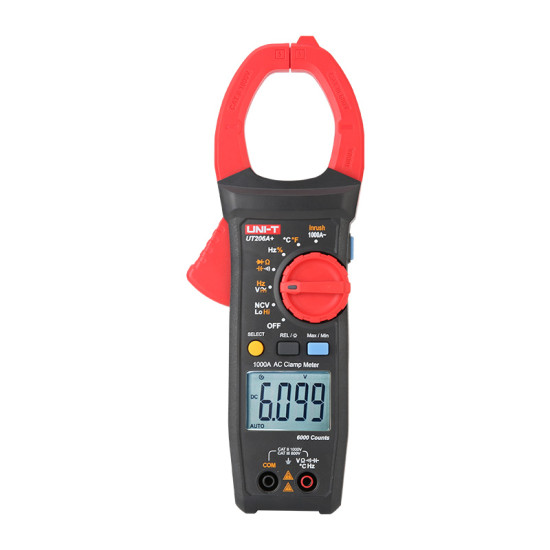

The UNI-T UT205A+ is a high-precision 1000A AC digital clamp meter engineered for heavy-duty electrical testing, facility maintenance, and commercial power plant troubleshooting. Featuring a high-contrast 4000-count backlit display, this instrument provides clear measurement readings even in poorly illuminated electrical enclosures, dark utility vaults, or direct daylight settings. Designed with a generous 45mm jaw aperture, the UT205A+ clamps effortlessly around thick multi-conductor bundles, high-capacity copper busbars, and large main feeders commonly encountered in industrial switchgear, motor control centers, and heavy power distribution networks.
Advanced Circuit Diagnostics and Electrical Versatility
Beyond current measurement, the UT205A+ serves as a comprehensive electrical diagnostic tool capable of measuring AC and DC voltage up to 1000V, resistance, frequency, duty cycle, and capacitance. The instrument incorporates integrated non-contact voltage (NCV) detection, allowing field engineers to rapidly verify live conductors without physical insulation penetration. Built-in continuity audibility and diode testing streamline quick component checks, while functional modes such as Data Hold, MAX/MIN tracking, and Inrush Current capture deliver essential insights when diagnosing motor starting spikes and fluctuating industrial loads.
Rugged Construction and Safety Compliance

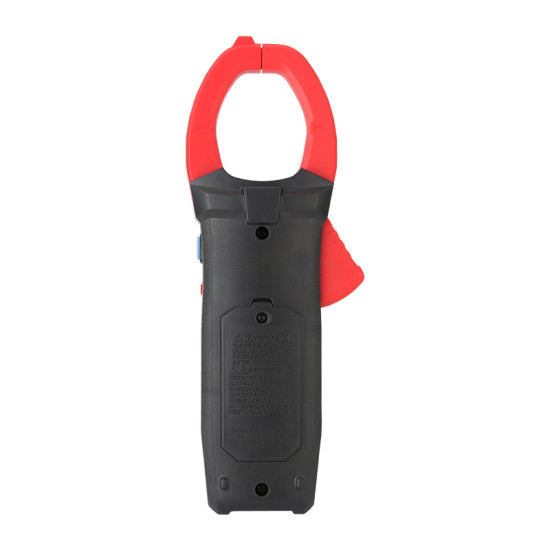

Built to withstand demanding field environments, the UT205A+ features an impact-resistant double-molded housing engineered to survive accidental drops and rough handling. Rated for CAT II 1000V and CAT III 600V safety environments, the device integrates internal over-voltage protection across all measurement ranges. Complete with auto-power off functions for battery preservation and full input overload protection, this clamp meter offers high reliability for high-power industrial branch circuits, commercial HVAC systems, and electrical distribution panels.
Specifications | Range | UT205A+ | UT206A+ |
AC current (A) | 1000A | ±(1.5%+5) | ±(1.5%+5) |
Inrush current (A) | 600A | ±(5%+10) | |
AC voltage (V) | 1000V | ±(1.0%＋2) | ±(1.0%＋2) |
ACV frequency (Hz) | 10Hz～10kHz | ±(1.0%＋5) | ±(1.0%＋5) |
DC voltage (V) | 1000V | ±(0.7%＋3) | ±(0.7%＋3) |
Resistance (Ω) | 40MΩ | ±(0.8%+2) | |
60MΩ | ±(0.8%+2) | ||
Capacitance (F) | 40mF | ±(4%+5) | |
60mF | ±(4%+5) | ||
Frequency (Hz) | 10.00Hz～10.00MHz | ±(0.1%+4) | ±(0.1%+4) |
Temperature (℃/℉) | –40℃～1000℃/–40℉～1832℉ | ±4℃/±5℉ | |
Features | |||
Display count | 4099 | 6099 | |
Jaw opening | 45mm | 45mm | |
Auto range | √ | √ | |
Duty cycle | √ | √ | |
NCV | √ | ||
