8mm LED Traffic Light Module for Arduino

Overview

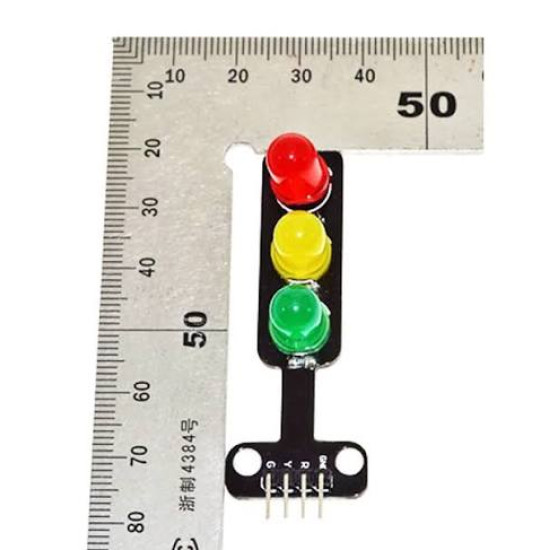

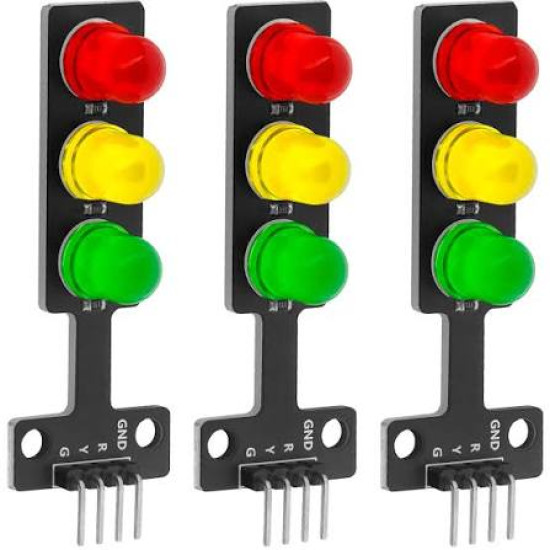

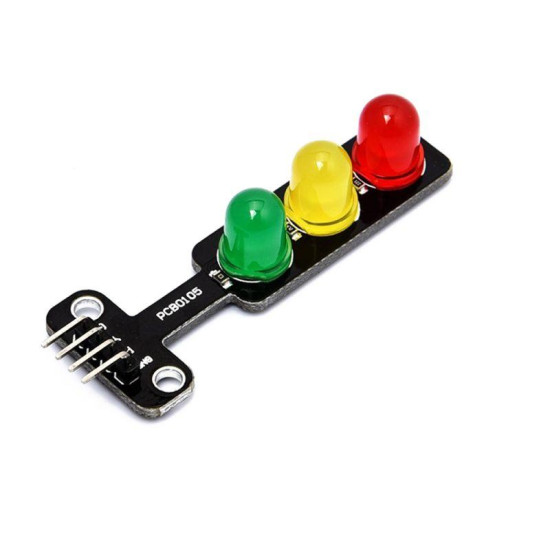

The 8mm Traffic Light Module is a high-visibility, three-color mini signal indicator system optimized for rapid prototyping with 3.3V and 5V microcontrollers. Designed specifically for system state visualization, breadboard integration, traffic signal automation projects, and human-machine interface prototyping, this compact printed circuit board consolidates three distinct 8mm diffused Light Emitting Diodes (Red, Yellow, Green) into a unified standard pinhead architecture. Whether interfacing with Arduino, Raspberry Pi, ESP32, or STM32 platforms, the module delivers reliable visual feedback without requiring external breadboard components or manual current-limiting calculations.

Circuit Architecture and Hardware Integration

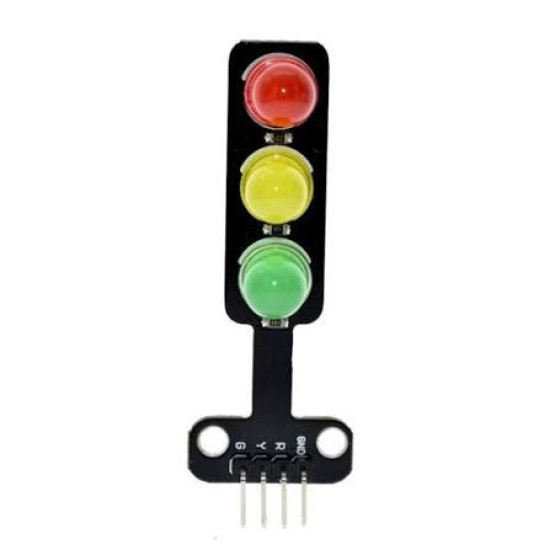

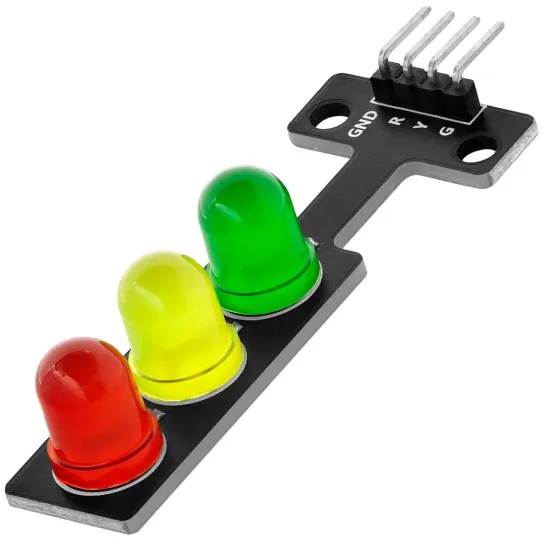

Engineered with an optimized common cathode layout, the module breaks out four standard 0.1-inch (2.54mm) pitch male header pins: GND, R (Red), Y (Yellow), and G (Green). Each illumination channel incorporates a dedicated SMD current-limiting resistor tuned specifically to maintain a stable operating current of approximately 15mA per channel under 5V logic, and roughly 8mA under 3.3V logic. This integrated resistor matrix protects the high-intensity LED dies from thermal runaway and overcurrent failure while eliminating the need for inline discrete resistors. The active HIGH input logic enables direct GPIO pin driving using basic digital output commands, pulse-width modulation (PWM) dimming routines, or state-machine traffic sequences.

Optical Performance and Thermal Dynamics

Each 8mm epoxy-encapsulated LED utilizes a diffused lens cover to maximize viewing angles up to 60 degrees, minimizing directionality glare while producing uniform, highly saturated light emission. The Red LED operates at a forward voltage (Vf) nominal range of 1.8V to 2.2V with a dominant wavelength of 620nm to 625nm. The Yellow LED operates at a Vf of 2.0V to 2.2V with a wavelength of 588nm to 592nm. The Green LED operates at a Vf of 3.0V to 3.4V with a wavelength of 515nm to 525nm. The high-grade FR4 PCB substrate acts as a passive heatsink, ensuring stable luminous output during prolonged continuous operation across temperature ranges from -20 degrees Celsius to +70 degrees Celsius.

Application Scenarios and Embedded Control

The module excels in educational STEAM curricula, smart city scale-model simulations, automated conveyor visual status indicators, industrial alarm signaling, and IoT device state monitoring. Integration requires connecting the GND pin to system ground and mapping pins R, Y, and G to digital GPIO outputs. Programming logic can implement classic traffic sequence timing, blinking warning signals via hardware timers, or analog state dimming using high-frequency PWM driving signals.
