- Stock: In Stock
- Model: UNI-T UT60S Smart Digital Mult
- Weight: 290.00
- Dimensions: 169.00 x 81.00 x 46.00
- SKU: 4088
Product Overview

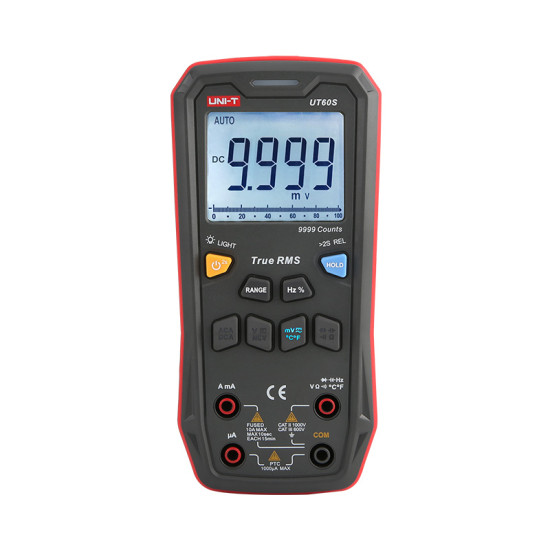

The UNI-T UT60S is an advanced smart True RMS digital multimeter engineered for precise electrical diagnostics, electronic circuit troubleshooting, and industrial maintenance. Designed with a high-resolution 9999-count display, the UT60S delivers exceptional clarity and measurement accuracy across a broad spectrum of electrical parameters. Featuring intelligent auto-ranging and automatic parameter identification, the meter streamlines complex testing procedures by automatically selecting optimal measurement ranges and modes, drastically reducing setup time and mitigating operational errors on the bench or in the field.
Precision True RMS Measurements and Smart Auto-Ranging
Capable of measuring non-sinusoidal AC signals with True RMS precision, the UT60S handles DC and AC voltages up to 1000V and current loads up to 10A. Its smart measurement algorithm intelligently identifies input signals, enabling effortless transitions between voltage, current, resistance, and continuity functions. With a DC voltage accuracy rated at plus or minus 0.5% + 3 digits and frequency measurement capabilities spanning 99.99 Hz up to 9.999 MHz, technicians can confidently troubleshoot low-voltage microelectronics, variable frequency drives, and industrial power distribution systems.
Specifications of
UT60 Series Digital Multimeters

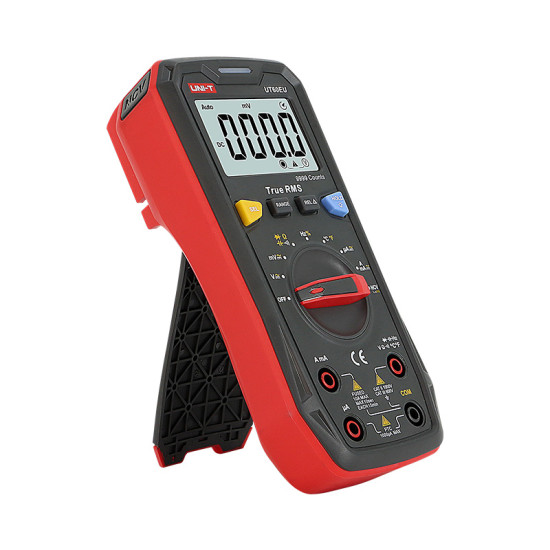

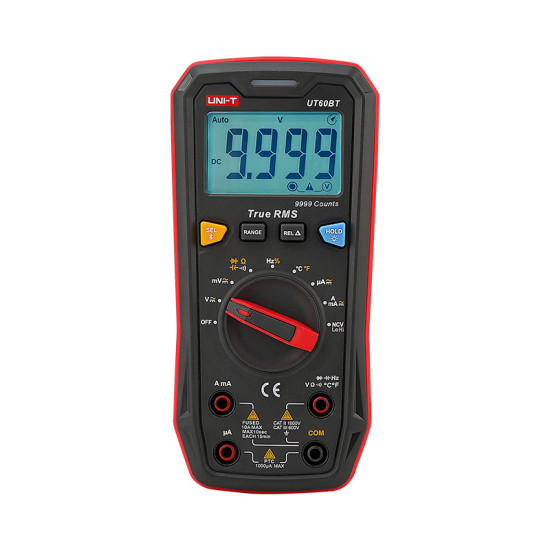

Specification | Range | UT60EU | UT60BT | UT60S |
DC Voltage | 9.999mV/99.99mV/999.9mV/ | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
AC Voltage | 9.999mV/99.99mV/999.9mV/ | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
DC Current | 999.9uA/999.9mA/9.999A/10A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
AC Current | 999.9uA/999.9mA/9.999A/10A | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) |
Resistance | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
Capacitor | 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/9.99mF
(UT60EU/UT60BT)/99.9mF(UT60S) | ±(4.0%+5) | ±(4.0%+5) | ±(4.0%+5) |
Frequency | 99.99Hz～9.999MHz | ±(0.1%+5) | ±(0.1%+5) | ±(0.1%+5) |
Duty Cycle | 0.1～99.9% | ±(3%+5) | ±(3%+5) | ±(3%+5) |
Temperatue | –40℃～1000℃/–40°F～1832°F | ±4℃/±5℉ | ±4℃/±5℉ | ±4℃/±5℉ |
Features | ||||
Bluetooth | √ | |||
Display Count | 9999 | 9999 | 9999 | |
Auto Range | √ | √ | √ | |
REL | √ | √ | √ | |
NCV | √ | √ | √ | |
Diode | √ | √ | √ | |
Continuity Test | √ | √ | √ | |
Acousto-optic
Indication (NCV/continuity/battery power) | √ | √ | √ | |
Low Battery
Indication | ≤3.6V | √ | √ | √ |
Data Hold | √ | √ | √ | |
Auto Power Off | 15Min | √ | √ | √ |
Operation
Temperature | 0℃～40℃ | |||
Safety | CAT II 1000V/CAT III
600V | |||
General Characteristics | ||||
Battery | 1.5V AAA x 3 | |||
Product Color | Red and Gray | |||
Product Net Weight | 290g | |||
Product Size | 169mm x 81mm x 46mm | |||
Comprehensive Diagnostic Capabilities
Beyond essential voltage and current evaluation, the UT60S provides extended capacitance measurement reaching up to 99.9mF, making it well-suited for testing large filter capacitors and power supplies. The instrument also supports high-resistance measurements up to 99.99 Mohms, duty cycle analysis from 0.1% to 99.9%, temperature testing from -40 degrees C to 1000 degrees C via thermocouple, diode verification, and continuity testing. Integrated Non-Contact Voltage (NCV) sensing delivers acousto-optic alerts to immediately detect live AC lines without direct metallic contact.
Safety, Ergonomics, and Field Durability

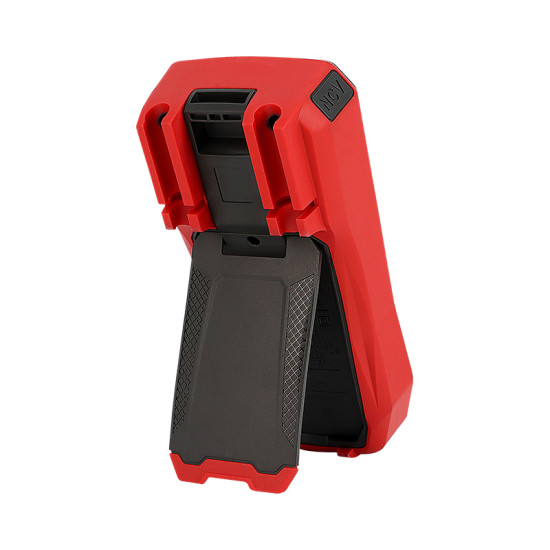

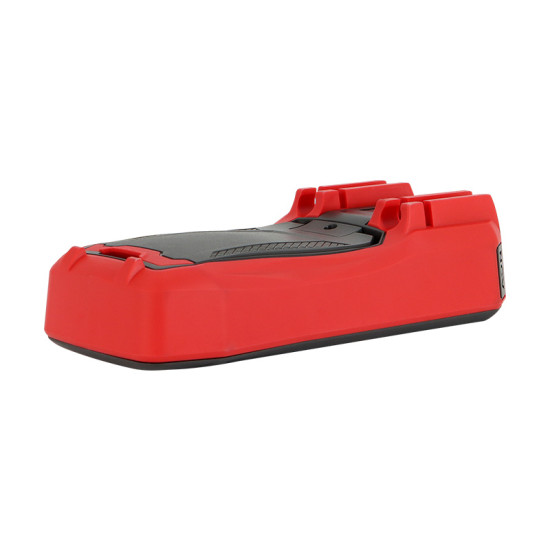

Engineered to operate safely in harsh industrial environments, the UT60S meets CAT II 1000V and CAT III 600V safety overvoltage standards. The rugged housing provides impact resistance and a secure grip during active field deployment. A bright LCD backlight ensures clear reading visibility in dark enclosures or low-light conditions. Built-in productivity functions—including Data Hold, Relative Mode (REL), low battery warning at or below 3.6V, and an automatic 15-minute power-saving shutdown—ensure reliable, prolonged operation using three standard 1.5V AAA batteries.
