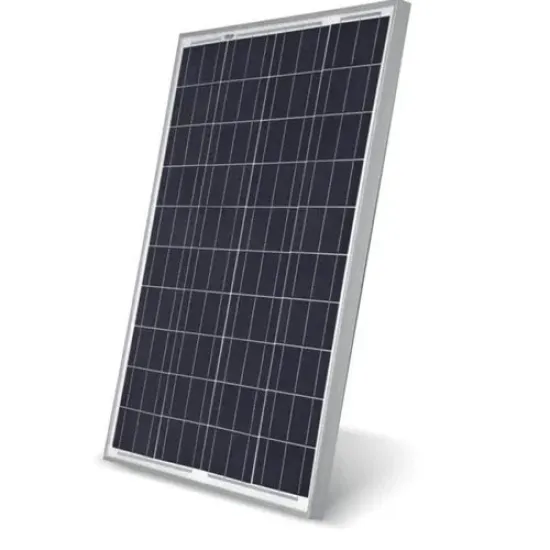

Solar Panel 20W 18V Photovoltaic

High Efficiency Photovoltaic Cell Architecture

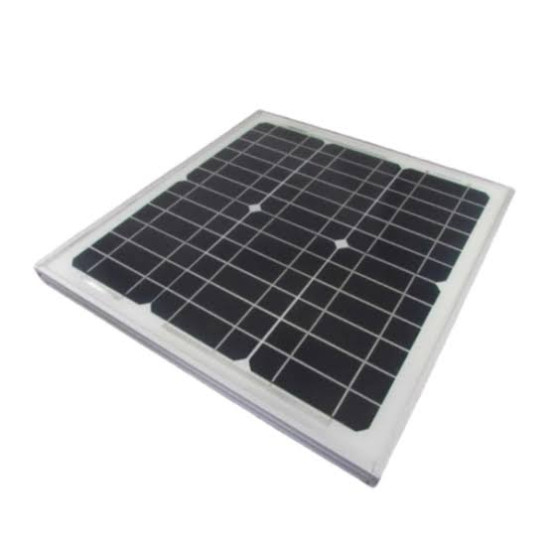

The Solarmax 20W Monocrystalline Photovoltaic Solar Panel utilizes high-grade silicon wafers engineered for elevated conversion efficiency and maximum spatial energy yield. Designed with advanced cell texturing and anti-reflective surface coatings, the module maximizes photon absorption across the solar spectrum. This allows robust power output even under low-irradiance conditions, diffuse daylight, or overcast sky environments. The low-iron, high-transparency tempered glass top layer shields the internal silicon wafer matrix while maintaining high solar transmittance.

Electrical Performance and System Compatibility

Operating at a peak power voltage (Vmp) of 18.0V with a maximum power current (Imp) of 1.11A, this 20-Watt module is optimized for direct pairing with 12V nominal battery architectures through standard solar charge controllers. Featuring an open-circuit voltage (Voc) of 21.6V and a short-circuit current (Isc) of 1.21A, the panel provides voltage headroom for both Pulse Width Modulation (PWM) and Maximum Power Point Tracking (MPPT) regulators. It effectively charges and maintains various energy storage chemistries, including Sealed Lead-Acid (SLA), AGM, Gel, and Lithium Iron Phosphate (LiFePO4) battery packs, counteracting self-discharge and maintaining stable continuous supply for remote equipment.

Ruggedized Structural Engineering and Weatherproofing

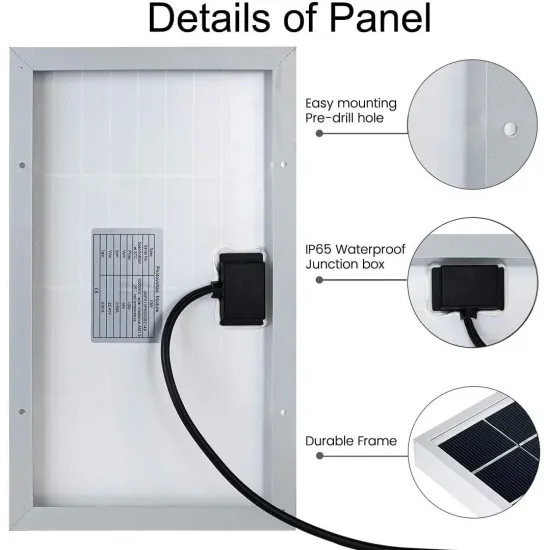

Constructed for continuous, unattended outdoor deployment, the solar module is enclosed in a heavy-duty anodized aluminum alloy frame that provides structural rigidity, resistance to mechanical twisting, and protection against atmospheric corrosion. The weather-sealed rear junction box includes integrated bypass diodes to prevent reverse current leakage during low-light periods and night cycles while mitigating hotspot effects caused by partial shading. Designed to operate across extreme environmental thermal conditions ranging from -40 degrees Celsius to +85 degrees Celsius, this panel reliably withstands environmental stressors such as hail impact, heavy rain, high winds, and intense continuous UV exposure.

Versatile Off-Grid Applications

With its compact footprint and pre-drilled frame mounting holes, this module integrates into remote environmental monitoring stations, industrial IoT sensor nodes, SCADA telemetry systems, outdoor security cameras, agricultural gate controllers, marine setups, RVs, and standalone off-grid power kits. Its low maintenance overhead and high solid-state reliability make it an indispensable primary power source for field deployments and remote infrastructure.
