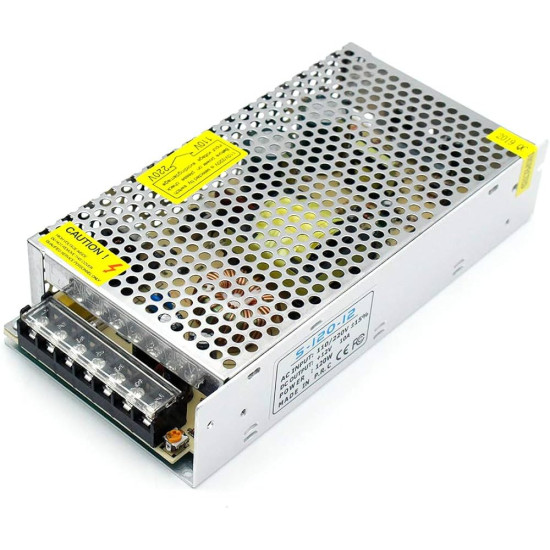

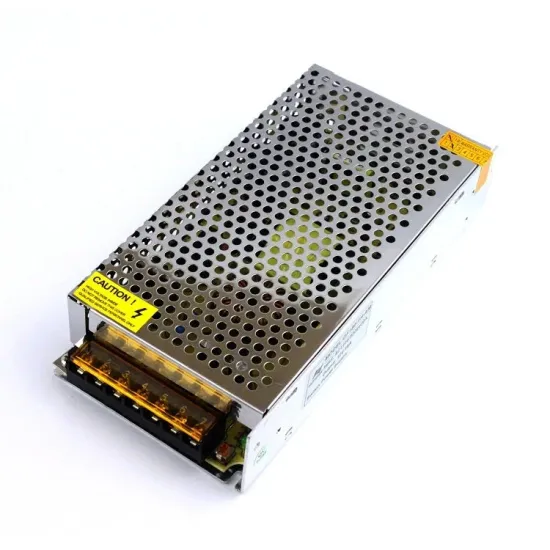

12V 15A 180W Switch Mode LED Power Supply

High-Efficiency 12V 15A Power Conversion Architecture

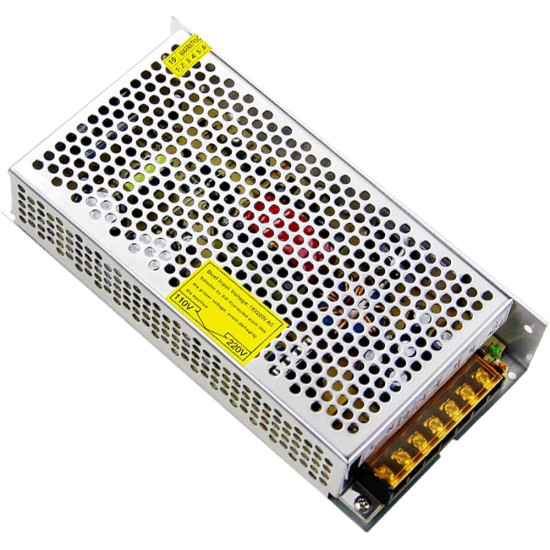

The 12V 15A 180W Switch Mode Power Supply is a high-performance regulated AC-DC converter engineered to deliver clean, uninterrupted direct current power to demanding electronic loads. Utilizing advanced Pulse Width Modulation technology and high-frequency switching architecture, this unit achieves energy conversion efficiency exceeding 85 percent while maintaining minimal operational heat generation. It accepts a wide AC input voltage range from 110V to 220V AC, selectable via an integrated toggle switch, outputting a tightly regulated 12V DC voltage with minimal ripple and noise figures below 150mV peak-to-peak under full rated operational load.

Robust Circuit Architecture and Thermal Dynamics

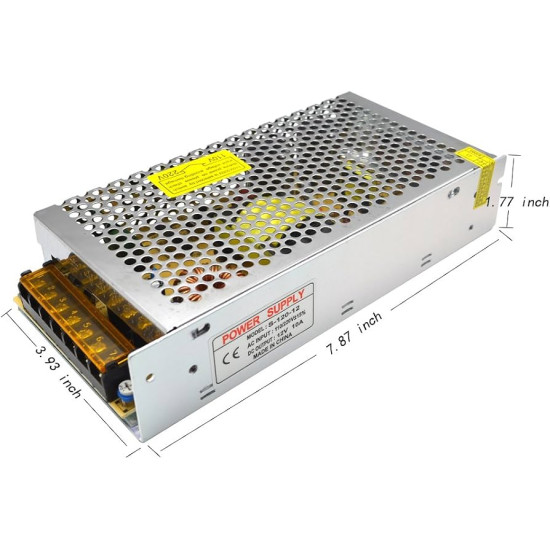

Built with high-grade solid-state filter capacitors, double-sided glass-epoxy PCB construction, and high-frequency ferrite core transformers, this power supply guarantees minimal electromagnetic interference and highly stable voltage regulation under rapid load transients. Front-end EMI filtering with X and Y suppression capacitors ensures compliance with stringent industrial noise standards. Thermal dissipation is passively achieved through an anodized, structural perforated aluminum alloy chassis that acts as a high-surface-area natural radiator. This fanless design provides completely silent convection cooling, preventing mechanical failure points associated with moving cooling fans and ensuring long Mean Time Between Failures in dust-sensitive or high-vibration operational environments.

Multi-Stage Integrated Circuit Protections

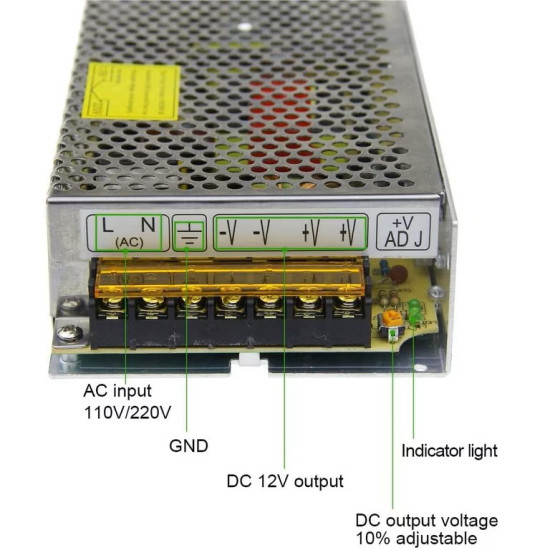

To safeguard connected sensitive electronics and downstream load components, this power supply integrates a comprehensive suite of auto-recovery safety mechanisms. Built-in protection includes over-current protection with hiccup-mode fold-back current limiting, output over-voltage clamping via Zener feedback loops, thermal shutdown triggered at critical component temperatures, and continuous output short-circuit protection. An integrated LED status indicator provides real-time visual confirmation of active DC output power, while heavy-duty flame-retardant terminal blocks with protective flip-down covers ensure secure, high-current wire terminations with minimal contact resistance.

Versatile Hardware Integration and Systems Applications

With its high continuous current output rating of 15 Amps across dual V+ and V- output terminals, this regulated driver is optimized for a broad array of industrial, commercial, and DIY applications. It serves as a reliable core power hub for high-density 12V addressable LED strip arrays, multi-camera CCTV security systems, CNC stepper motor microstepping drivers, 3D printer heated beds, single-board computer cluster arrays, and custom automated robotics requiring dependable, ripple-free direct current power.
