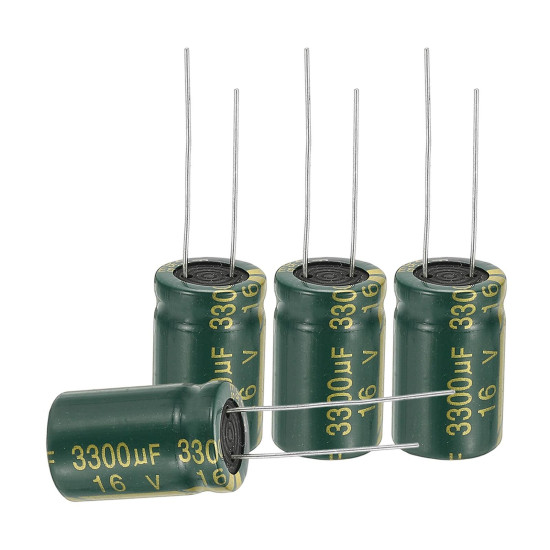

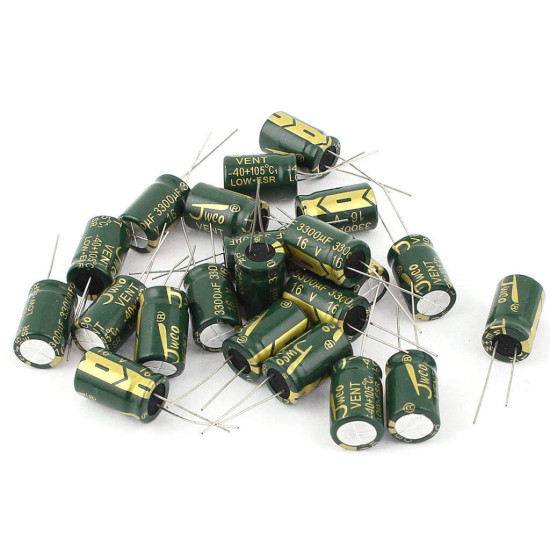

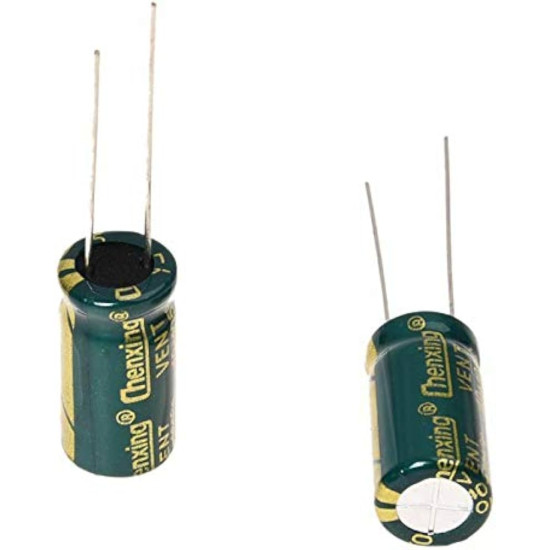

3300uF 16V Radial Aluminum Electrolytic Capacitor

Product Overview and Electrochemical Architecture

The 3300uF 16V Radial Aluminum Electrolytic Capacitor is an industrial-grade passive energy storage component designed for low-voltage direct current (DC) smoothing, transient suppression, and high-capacitance decoupling. Structurally, this component consists of high-purity etched aluminum foil sheets separated by porous kraft paper separators impregnated with a specialized liquid or gel electrolyte. The continuous etched surface of the anode foil provides an expansive microscopic surface area, while a microscopic, chemically formed aluminum oxide (Al2O3) layer acts as a robust dielectric with high dielectric strength. Enclosed in a hermetically sealed cylindrical aluminum can with a heavy-duty safety vent and insulated by a durable polyvinyl chloride (PVC) or polyethylene terephthalate (PET) sleeve, this capacitor ensures reliable charge retention, low leakage currents, and stable operational performance under demanding thermal and electrical stresses.

Dielectric Mechanics and Operational Physics

Capacitance in this device is governed by the electrostatic interaction between the polarized conductive foils and the electrochemically formed oxide barrier. Operating at a standard working voltage of 16V DC, the component offers an optimal balance between volumetric efficiency and dielectric withstand strength. The rated surge voltage threshold sits comfortably above the nominal rating, typically at 18.4V DC, allowing the component to withstand momentary inductive kickbacks and transient spikes without triggering dielectric breakdown or thermal runaway. The inherent self-healing properties of the liquid electrolyte assist in re-anodizing localized defects in the aluminum oxide layer during regular operation under rated voltage, preserving the electrical integrity and prolonging the useful working life of the component across varied operating environments.

Equivalent Series Resistance (ESR) and Ripple Current Dynamics

A critical operational parameter of the 3300uF 16V capacitor is its Equivalent Series Resistance (ESR). ESR represents the sum of the contact resistance of the terminal leads, the intrinsic resistance of the aluminum foils, the ionic resistance of the electrolyte solution, and the dielectric losses within the oxide layer. At standard testing frequencies (100 Hz to 120 Hz) and elevated frequencies (10 kHz to 100 kHz), the ESR profile directly dictates the maximum allowable root-mean-square (RMS) ripple current the capacitor can conduct without incurring dangerous internal core temperature rises. By maintaining a tightly controlled low-ESR profile, this capacitor minimizes internal I2R heating losses, enabling reliable continuous operation under heavy AC ripple conditions typical of modern high-efficiency switching topologies and continuous duty power supplies.

Thermal Longevity and the Arrhenius Rule

Rated for continuous duty across an industrial operating temperature envelope of -40 degrees Celsius to +105 degrees Celsius, this radial electrolytic capacitor demonstrates resilience in harsh thermal domains. The lifespan of liquid electrolyte capacitors is governed fundamentally by the Arrhenius rate law, which establishes that the operational lifespan approximately doubles for every 10-degree Celsius reduction in core operating temperature below its maximum rating. While rated for 2,000 to 5,000 hours at its maximum thermal threshold of +105 degrees Celsius under full ripple loading, operating this capacitor in ambient environments of +45 degrees Celsius to +65 degrees Celsius extends its functional field longevity to tens of thousands of continuous operational hours, making it an exceptional candidate for long-life industrial machinery and continuously connected power conversion hardware.

Terminal Pinout and Mechanical Polarization

This capacitor features an asymmetric through-hole radial lead configuration designed for polarized PCB mounting. Polarity must be strictly observed to avoid catastrophic gas generation, internal overpressurization, and safety vent activation. The terminal pinout configuration is structured as follows:

Cathode Terminal (Negative / -): Identified physically by the shorter external lead wire on unformed stock components. On the capacitor body, the cathode side is unequivocally marked by a wide vertical running stripe on the outer insulating sleeve containing clear minus (-) symbols. In circuit layouts, the cathode terminal must connect to circuit ground (GND) or the lower electrical potential node.

Anode Terminal (Positive / +): Identified by the visibly longer external lead wire on factory-supplied units. The corresponding side of the insulating sleeve is unmarked, presenting the base color of the wrapper. The anode terminal must always connect to the positive DC rail. Installing this component with reverse polarity causes rapid dielectric decomposition, high leakage current, extreme internal boiling of the electrolyte, and eventual venting through the scored top safety cross.

PCB Layout, Soldering Profiles, and Footprint Engineering

Integrating this radial capacitor onto printed circuit boards requires careful attention to footprint spacing, trace sizing, and soldering thermal profiles. Featuring a standard lead spacing (pitch) of 5.0 mm and lead diameters of approximately 0.6 mm to 0.8 mm, the PCB land pattern should utilize through-hole pad diameters of at least 1.8 mm to 2.0 mm with plated hole diameters of 1.0 mm to 1.1 mm to ensure robust mechanical anchoring and optimal solder fillet formation. Copper traces servicing the terminals must be widened or routed as dedicated copper pours to minimize trace inductance and handle the significant circulating ripple currents without localized PCB heating. Hand soldering should be performed with a calibrated iron tip between 350 and 370 degrees Celsius for no more than 3 to 5 seconds per joint. For automated wave soldering processes, preheat temperatures should not exceed 100 to 120 degrees Celsius, followed by a solder wave contact duration under 10 seconds to prevent thermal shock to the internal rubber end seal.

Applications

1: Switched-Mode Power Supply (SMPS) Secondary Stage Filtering

In offline flyback and forward converter topologies, the secondary rectification stage produces high-frequency pulsating DC current. The 3300uF 16V capacitor functions as a low-impedance bulk energy reservoir directly downstream of the secondary Schottky barrier diode. It shunts high-frequency switching noise to ground, absorbs residual inductive spikes, and smooths the rectified waveform into a stable, ripple-free direct-current bus. Its high capacitance value ensures minimal output voltage droop when external dynamic loads transition abruptly from idle to full rated current.

2: Point-of-Load (PoL) DC-DC Buck Converter Stabilization

Synchronous step-down converters stepping down 12V rails to lower voltage logic levels experience severe high-frequency transient demands. Positioned at the input or output stage of a buck regulator, this 3300uF capacitor acts as a localized reservoir that mitigates line inductance effects. During rapid pulse-width modulation (PWM) switching cycles, it provides instantaneous current to the high-side MOSFET, preventing severe voltage dips on the primary power bus and keeping conducted electromagnetic interference (EMI) within regulatory limits.

3: Linear Power Supply Reservoir Capacitance

In traditional transformer-based linear power supplies, mains AC voltage is stepped down, rectified through a full-wave diode bridge, and filtered before reaching a linear regulator such as an LM7812 or LM317. At 100 Hz or 120 Hz rectification frequencies, substantial capacitance is required to bridge the trough between successive rectified half-wave peaks. The 3300uF rating ensures that the peak-to-peak ripple voltage remains significantly lower than the regulator dropout threshold, preventing audible hum in downstream analog circuitry.

4: High-Power Audio Amplifier Rail Decoupling

Audio power amplifiers, particularly Class-AB and Class-D designs operating on single-rail or split-rail 12V to 14.4V supplies, demand sudden, massive current surges during high-amplitude low-frequency acoustic transients, such as bass drum strikes and low-frequency synthesizer drops. Installing this 3300uF capacitor directly adjacent to the output transistor collector or drain leads eliminates power supply sag, prevents clipping distortion, stabilizes the negative feedback loop, and preserves audio transient fidelity.

5: DC Motor Driver and H-Bridge Inrush Buffering

Inductive actuators, brushed DC motors, and brushless DC (BLDC) motor driver stages introduce significant back-electromotive force (back-EMF) and high inrush currents upon acceleration or directional reversal. Integrated across the DC bus of an H-bridge driver circuit, this capacitor absorbs dangerous inductive reverse-polarity energy spikes generated by motor coil collapse, clamps the bus voltage within safe MOSFET breakdown boundaries, and supplies the high startup stall currents without destabilizing the digital control logic.

6: Cellular Modem and IoT Peak Pulse Buffer

Wireless communication modules operating on standards such as GSM, LTE-M, and NB-IoT transmit high-power radio frequency bursts that demand instantaneous current pulses up to 2A to 3A for millisecond durations. When powered from current-limited 12V to 5V step-down stages, these RF bursts can trigger low-voltage cutoffs or system brownouts. Placing this 3300uF 16V capacitor on the intermediate rail buffers the peak RF transmission energy, sustaining the bus voltage and maintaining seamless wireless network connectivity.

7: Automotive Accessory 12V Power Clean-Up

The 12V electrical bus in automotive environments is inherently noisy, subject to alternator ripple, load dumping, and ignition inductive spikes. After initial overvoltage clamping by a transient voltage suppressor (TVS), this capacitor serves as an effective intermediate filter for downstream telematics units, dashboard displays, and sensor nodes. Its -40 to +105 degrees Celsius operational profile conforms with under-dashboard passenger compartment thermal requirements, smoothing noisy electrical lines for sensitive microcontrollers.

8: Uninterruptible Power Supply (UPS) Hold-Up Time Extension

In critical embedded computers, process controllers, and network equipment, momentary power interruptions can cause data loss or memory corruption. Operating at the output of battery management stages or low-voltage DC holding rails, this 3300uF capacitor provides several vital milliseconds of electrical hold-up time during primary power failure. This brief window gives supervisory microcontrollers adequate time to detect the power loss interrupt, flush internal volatile cache memory to non-volatile flash storage, and safely park read and write operations.
