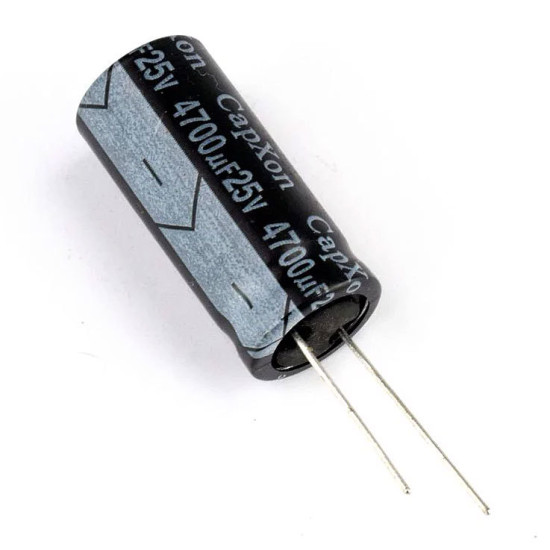

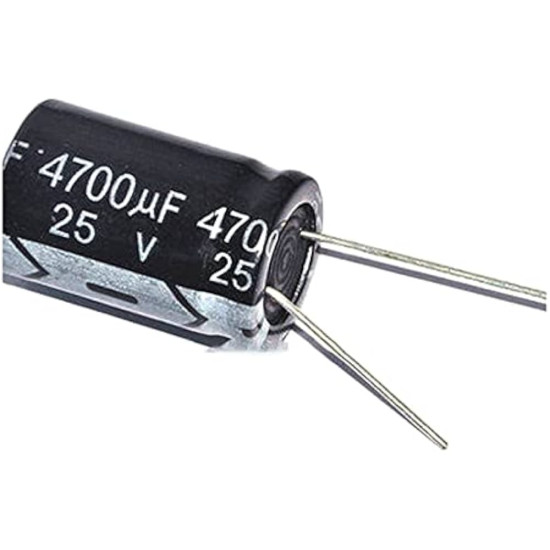

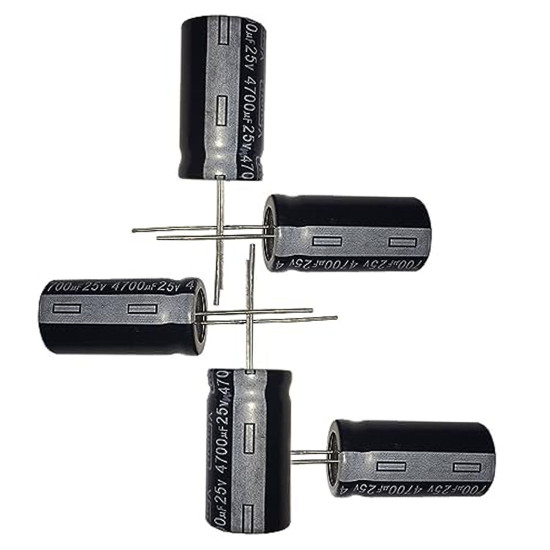

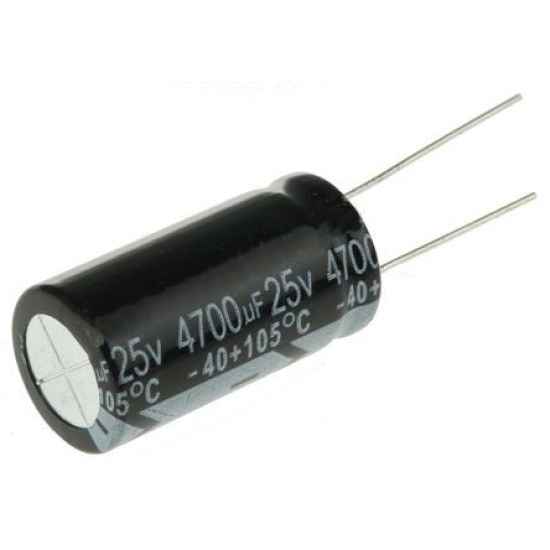

4700uF 25V Radial Electrolytic Capacitor

Comprehensive Product Overview

The 4700uF 25V radial aluminum electrolytic capacitor is a high-capacity passive electronic component engineered for charge retention, low-frequency ripple suppression, and robust voltage stabilization in demanding power distribution networks. Designed to operate efficiently within consumer, industrial, and automotive electronic topologies, this component serves as a localized energy reservoir capable of mitigating transient voltage drops and absorbing transient voltage spikes. Capacitors of this tier are critical in bridge rectifier outputs, intermediate DC links, and variable load decoupling networks where rapid, localized current delivery is required to preserve signal integrity and operational stability.

With a nominal capacitance of 4700 microfarads and an operational working voltage rating of 25 volts direct current (VDC), this device delivers an optimal capacitance-to-volume ratio. It leverages high-gain etched aluminum foil foils to maximize electrostatic surface area within a compact cylindrical footprint. Encased in a hermetically sealed aluminum housing with a precision liquid electrolyte formulation, the component exhibits superior resistance to dielectric breakdown, low leakage currents, and extended thermal endurance under sustained operational stress.

Internal Electrochemistry and Physical Construction

The interior architecture of this radial capacitor relies on high-purity aluminum foil etched with micro-tunnels via an electrochemical process to expand the active surface area by orders of magnitude compared to unetched foil. A thin dielectric layer of aluminum oxide (Al2O3) is formed anodically across the surface of the positive foil (anode), providing a high dielectric breakdown voltage per unit of thickness. Liquid electrolyte, composed of organic solvents and conductive ionic solutes, permeates high-porosity cellulose separator paper interposed between the anode and cathode foils, maintaining intimate contact with the etched micro-cavities to act as the true functional cathode.

The tightly wound cylinder, or jelly roll, is connected to low-resistance internal lead tabs that terminate in pure tin-plated copper-clad steel leads. This assembly is stabilized within a high-grade drawn aluminum outer can and sealed at the base with a specialized synthetic ethylene propylene diene monomer (EPDM) rubber bung. This rubber bung prevents premature dry-out of the liquid electrolyte under high ambient operating temperatures while providing dependable resistance to mechanical vibration and shock. The top crown of the aluminum can incorporates an engineered cross-pattern safety vent designed to open deliberately in the event of severe thermal overload or catastrophic reverse polarization, thereby releasing internal gas pressure non-violently.

Electrical Characteristics and Thermal Endurance

Operating with a standard nominal capacitance tolerance of plus-or-minus 20 percent measured at 120 Hz and 20 degrees Celsius, this capacitor performs reliably across a standard operating temperature range spanning from minus 40 degrees Celsius to positive 105 degrees Celsius. The component handles substantial alternating current (AC) ripple currents, rated typically up to 2.1 Amperes RMS at 105 degrees Celsius and 100 kHz, rendering it suitable for high-frequency switching environments and heavy-duty 50/60 Hz rectification circuits. The equivalent series resistance (ESR) is engineered to stay exceptionally low across its frequency spectrum, reducing internal I-squared-R thermal generation during high-load switching states.

Leakage current characteristics conform to rigorous industry thresholds, maintaining a baseline of less than or equal to 0.01 times the product of capacitance and working voltage (0.01CV) or 3 microamperes, whichever is greater, after two minutes of continuous electrification. The dissipation factor (tan delta) remains below 0.16 at 120 Hz, underscoring high dielectric efficiency and reduced energy loss within the system. Designed for prolonged lifecycle operations, the capacitor offers an endurance rating ranging from 2000 to 5000 hours at continuous maximum rated temperature and voltage, translating to tens of thousands of hours under derated operational conditions according to standard Arrhenius thermal-doubling principles.

Pinout and Polarity Identification

Radial aluminum electrolytic capacitors are inherently polarized electronic devices requiring strict adherence to voltage orientation during assembly to prevent dielectric degradation, boiling of internal electrolyte, and activation of the pressure safety vent. The terminal pinout and mounting parameters are configured as follows:

Cathode Lead (Negative Terminal): Marked clearly on the exterior PVC or PET insulating sleeve by a broad, full-height colored vertical stripe containing negative minus symbols. On uncut, factory-fresh components, the cathode lead is physically cut shorter than the anode lead. During printed circuit board (PCB) insertion, this lead must connect directly to the ground (GND) or lower-potential electrical rail.

Anode Lead (Positive Terminal): Features a noticeably longer physical terminal lead on non-prepped stock and is positioned away from the marked negative stripe on the insulating jacket. This pin must connect to the higher-potential or positive DC electrical rail. The lead pitch between the anode and cathode centers is standardized at 7.5 millimeters, matching conventional PCB through-hole grid spacings and enabling clean insertion into automatic insertion machinery or manual hand-soldering assembly lines.

Application Use-Case

1: Audio Power Amplifier Rail Reservoir

In analog Class-AB and high-efficiency Class-D audio power amplifiers, dynamic bass passages demand immediate current bursts that exceed the instantaneous supply capacity of upstream power converters. Positioned across the split positive and negative power rails immediately adjacent to output power transistors, this 4700uF capacitor acts as an ultra-responsive bulk charge reservoir. It holds the supply rails constant during intense low-frequency audio transients, drastically mitigating audible rail sag, preventing crossover distortion, and improving low-end punch and acoustic fidelity across the entire dynamic range.

2: Switch-Mode Power Supply (SMPS) Bulk Output Filtering

Secondary rectification stages in switch-mode power supplies generate high-frequency switching ripple and lower-frequency envelope modulations that can compromise downstream digital or analog circuits. Integrating this 4700uF 25V capacitor on a 12V or 18V secondary DC bus smooths the high-amplitude triangular voltage spikes into a stable, clean direct current output. Its robust ripple current tolerance ensures long-term reliability against the thermal stresses imposed by continuous high-frequency pulsed charging.

3: DC Motor Driver Surge and Back-EMF Absorption

H-bridge motor drivers controlling brushed and brushless DC motors frequently experience dramatic voltage spikes caused by inductive energy kickback during rapid PWM switching and regenerative braking cycles. Placing this 25V capacitor across the high-current DC motor bus absorbs inductive spikes and supplies peak inrush currents during hard stalls or directional reversals. This protects sensitive MOSFET switching stages and gate driver integrated circuits from overvoltage punch-through.

4: Linear Voltage Regulator Post-Rectification Reservoir

In traditional mains-transformer-based DC power supplies, a full-wave diode bridge rectifies AC secondary voltages into pulsating direct current. Positioning this high-capacitance 4700uF component directly after the bridge rectifier levels the 100 Hz or 120 Hz sinusoidal ripples before presenting the DC voltage to linear regulators like the LM7812 or LM317. The resulting deep filter trough reduction ensures the linear regulator maintains its essential dropout voltage margin at all times, preventing mains hum from intruding onto regulated DC rails.

5: Solar PV Inverter Intermediate DC Bus Buffering

Small-scale solar photovoltaic micro-inverters and charge controllers convert fluctuating solar panel voltages to fixed battery charging levels. Due to shifting sunlight conditions and MPPT hunting cycles, current drawn from solar arrays changes dynamically. This capacitor provides localized DC bus smoothing, buffering the intermediate rail and filtering out high-frequency switching hash, thus protecting the sensitive analog feedback loops and microcontrollers embedded in the charge controller.

6: Automotive 12V Transient Voltage Suppression and Decoupling

Automotive electrical architectures are prone to harsh transient conditions, including alternator ripple, inductive relay shutoff surges, and electrical system noise. Used within 12V automotive infotainment modules, telemetry hardware, and auxiliary lighting control boards, this 25V-rated component buffers internal voltage regulators against supply rail droops during cold-crank scenarios, ensuring continuous processor operation without brownout reboots.

7: High-Power LED Lighting Driver Current Smoothing

Commercial and architectural high-lumen LED drivers require continuous DC current to prevent human-perceptible optical flicker and stroboscopic effects caused by AC line variations. This 4700uF capacitor serves as the primary energy tank on the constant-voltage secondary stage of LED drivers. By absorbing residual low-frequency ripple, the capacitor delivers flat, uninterrupted current through current-limiting drivers, extending the operating life and thermal performance of the high-power emitter arrays.

8: Uninterruptible Power Supply (UPS) Hold-Up Time Extension

Microcontroller-managed control logic in uninterruptible power supplies requires adequate hold-up time during sudden transitions between utility mains power and backup battery inverter supplies. Installing this 4700uF 25V capacitor on the primary low-voltage control supply rail supplies sufficient hold-up energy (calculated as one-half C times V squared) to sustain the MCU and control switching logic for critical milliseconds. This guarantees seamless execution of power transfer routines without logic state resets.

PCB Layout Guidelines and Thermal Management

To maximize the functional life and performance of the 4700uF 25V capacitor, board designers should adhere to recommended PCB trace geometry and component clearance. Traces terminating at the radial leads must be wide enough to conduct high root-mean-square currents without excessive resistive heating. Avoid routing high-current traces directly underneath the base rubber bung to prevent localized hot spots. Maintain a minimum vertical clearance of 3 millimeters above the top aluminum safety vent to allow the relief mechanism to activate cleanly if an overvoltage event occurs. Furthermore, position the capacitor away from high-temperature power components such as heat sinks, high-power resistors, and magnetic inductors to preserve electrolyte stability and achieve maximum field life.
